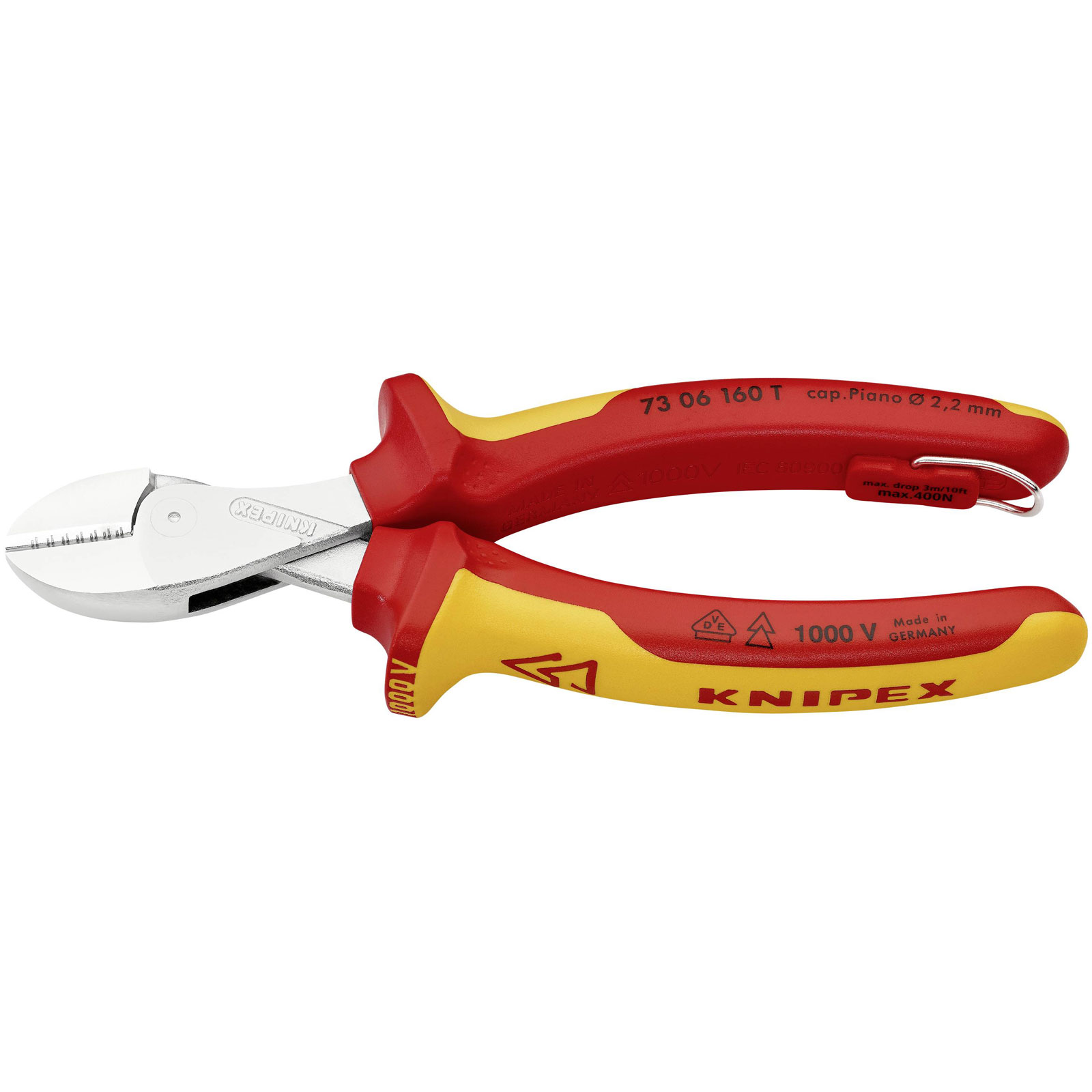

73 06 160 T KNIPEX X-Cut®cuts finest strands as well as multi-core cables and piano wires. Powerful, light and universal. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Box-joint design: highest stability with low weight. Doubly supported joint axis for heavy duty. Large opening width for thicker cables. Cuts precisely, even through fine copper wires. Compact, low-weight construction. Universally usable, in the assembly, maintenance and production. 40% less force required compared with standard diagonal cutters of the same length. Pliers with integrated, insulated tether attachment point for a tool tether.
Cutting capacities soft wire (diameter): Ø 4.8 mmCutting capacities medium hard wire (diameter): Ø 3.8 mmCutting capacities hard wire (diameter): Ø 2.7 mmCutting capacities piano wire (diameter): Ø 2.2 mmCutting capacity copper cable, multiple-stranded: Ø 12.0 mmDrop Protection System: yes VDE tested: yes
| Type |
Side cutter |
| ESD Safe |
No |
| Length |
160mm |
| VDE Safe |
Yes |
| Bevel |
cutting edges with bevel |
| Cutting capacity copper cable, multiple-stranded (diameter) |
12mm |
| DIN Standard |
DIN EN 60900 |
| Handles |
insulated with multi-component grips, VDE-tested with integrated insulated tether attachment point for a tool tether |
| Handles Feature |
VDE, Tethered Tools |
| Head |
chrome-plated |
| IEC |
IEC 60900 |
| Joint Design |
box joint |
| Material properties |
chrome plated |
| Range of use |
VDE |
| Surface |
chrome-plated |
| Weight |
175g |
| Width |
56mm |
