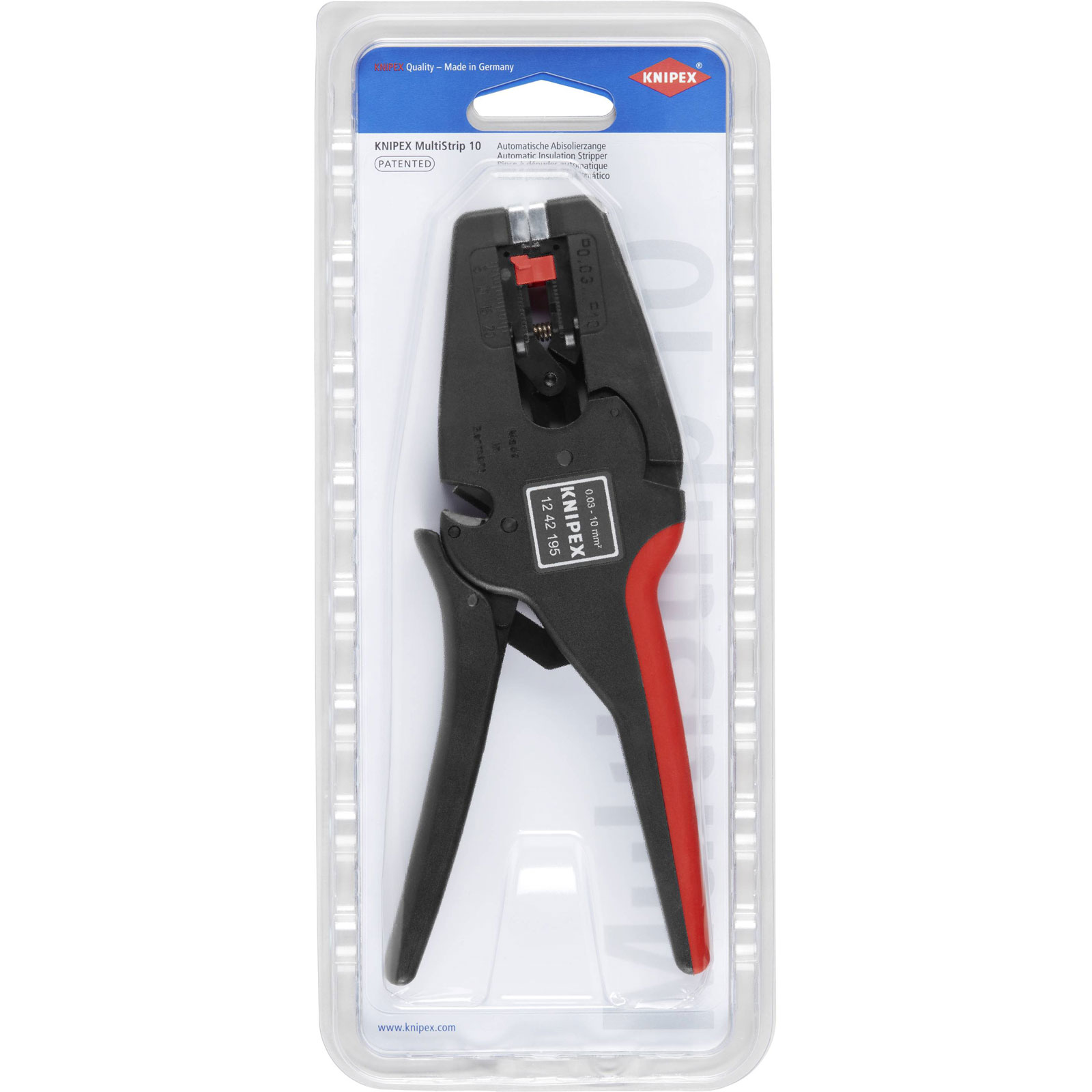

KNIPEX 12 42 195 SB MultiStrip 10 Automatic Insulation Stripper 195 mm

12 42 195 SB KNIPEX MultiStrip 10
Stripping without re-adjustment from 0.03 to 10.0 mm² (only at constant temperatures). recessed wire cutter. Recommended for industrial use due to long-term process reliability. Fully automatic adjustment to fine-stranded conductors with standard insulation throughout the entire capacity range from 0.03 to 10.0 mm². Universal blade geometry – robust and more durable. With recessed wire cutter for Cu and Al conductors, stranded up to 10 mm² and single wire up to 6 mm². No damage to the conductors. The clamping jaws made of steel hold the cable in a way that prevents slipping without damaging the remaining insulation. Particularly smooth-running mechanics and very low weight. Replaceable blades block and length stop. Handle with soft-plastic zone for a steady grip.

Stripping capacities in square millimetres: 0.03 — 10.0 mm²

AWG: 32 — 8

Type	Cable stripper
Length	195mm
Operating range (AWG diameter)	8 up to 32
Operating range (AWG cross section) (max.)	8AWG
Operating range (AWG cross section) (min.)	32
Operating range (cross section) (max.)	10mm²
Weight	195g
Width	115mm
Working area (cross section)	0.03 up to 10 mm²
Working area cross section (min.)	0.03mm²
