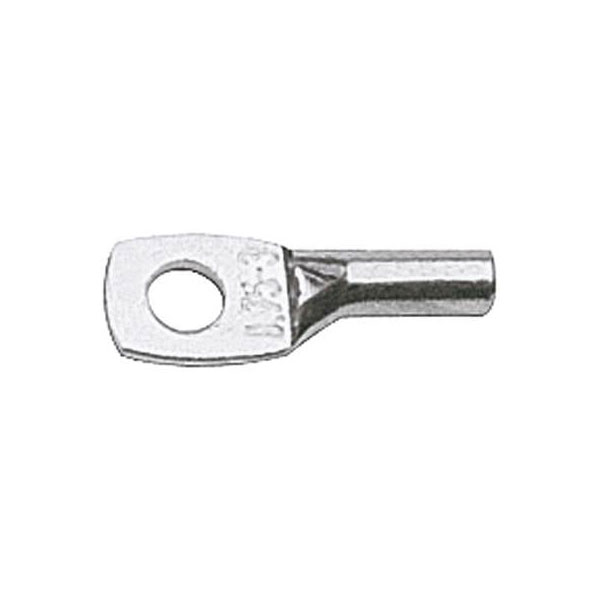

Klauke 92R3 Crimp Cable Lug with Peephole M3 1.50mm² Hole Dia3.2mm

Klauke's 92R3 crimp cable lug features a peephole design and is compatible with M3 screws. It is designed for use with 1.50 mm² cables and has a hole diameter of 3.2 mm. This connector is typically used in electrical installations and wire termination applications.

Connection Angle	180°
Contact Material	Copper silver plated
Cross Section	1.5mm²
Hole Ø	3.2mm
Material (details)	Cu, tin-plated surface
max. cross section	1.50mm²
Misc Attribute 1	With inspection hole, for fine-stranded conductors
Product Type	Crimp cable lug
Thread Size	M3
