Klauke 5R12 Crimp Cable Lug 180° M12 35mm² Hole Dia: 13mm For VDE 0295 Class 2

Image Representative of Range

Klauke 5R12 Crimp Cable Lug 180° M12 35mm² Hole Dia: 13mm For VDE 0295 Class 2

Klauke
Standard range
Order Code:

12-2802

Brand: Klauke MPN: 5R12 EAN-13: 2050001416391
Qty Unit Price (Ex VAT)
1+ £1.84
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
195 in stock, despatched in 4 working days

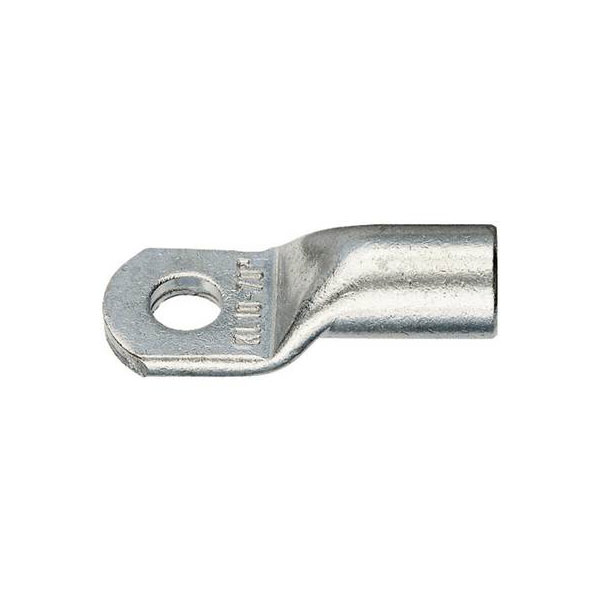

The Klauke 5R12 is a crimp cable lug designed for secure electrical connections with a straight 180° orientation. It features an M12 connection size, suitable for cables up to 35 mm², with a hole diameter of 13 mm. This crimp connector is ideal for use in electrical installations and maintenance tasks, ensuring durable and reliable connectivity.
Connection angle 180°
Contact material Copper silver plated
Cross section 35mm²
Hole Ø 13mm
Manufacturer part # 5R12
Material (details) Cu, tin-plated surface
max. cross section 35mm²
Misc Attribute 1 Without inspection hole
Misc Attribute 2 5R12
RoHS-compliant Yes
Thread Size M12
Type Crimp cable lug
