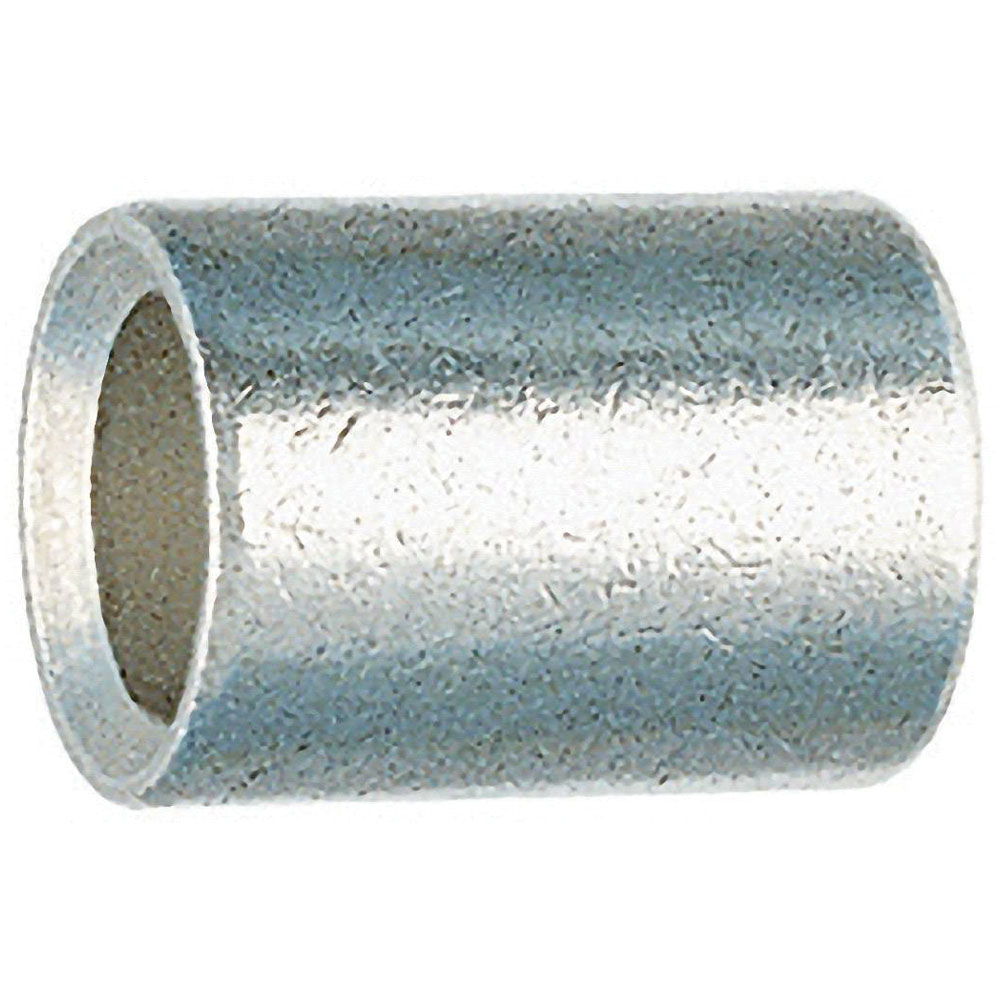

Klauke 1630L Parallel Connector 1.50-2.50 mm² Metal Not Insulated DIN 46341

Image Representative of Range

Klauke 1630L Parallel Connector 1.50-2.50 mm² Metal Not Insulated DIN 46341

Klauke
Standard range
Order Code:

12-2549

Brand: Klauke MPN: 1630L EAN-13: 2050001561329
Qty Unit Price (Ex VAT)
1+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,356 in stock, despatched in 4 working days

The Klauke 1630L parallel connector is a metal, non-insulated crimp connector designed for 1.50 mm² to 2.50 mm² wires. It is typically used in electrical installations where a reliable connection between wires is required. This versatile component is ideal for both industrial and domestic wiring applications.
Contact material Copper silver plated
Cross-section range 1.50 - 2.50 mm²
Dim (l x d4 x d1) 15 x 3,9 x 2,3 mm
Dimensions (l x d4 x d1) 15 x 3,9 x 2,3 mm
Factory colour Metal
Inside diameter 2.3mm
Insulation type Not insulated
Length 15mm
max. cross section 2.50mm²
Min. cross section 1.50mm²
Outside Ø 3.9mm
RoHS-compliant Yes
Type Parallel connector
