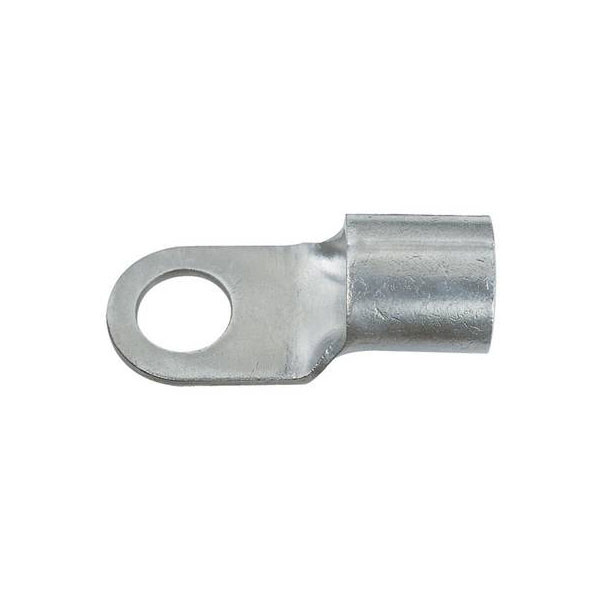

Klauke 16305 Ring Terminal 2.50mm² 5.3mm Hole Non-Insulated Metal

Image Representative of Range

Klauke 16305 Ring Terminal 2.50mm² 5.3mm Hole Non-Insulated Metal

Klauke
Standard range
Order Code:

12-2542

Brand: Klauke MPN: 16305 EAN-13: 2050001416469
Qty Unit Price (Ex VAT)
1+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
89 in stock, despatched in 4 working days

The Klauke 16305 is a metal ring terminal with a cross section of up to 2.50 mm² and a hole diameter of 5.3 mm, designed for automotive applications. As a non-insulated, solder-free crimp connector, it is suitable for creating secure and reliable electrical connections in vehicles. This product is commonly used in car wiring systems for its durability and ease of installation.
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Hole Ø 5.3mm
Insulation type Not insulated
Manufacturer part # 16305
Material (details) Cu-ETP, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 16305
RoHS-compliant Yes
Support sleeve No
Thread Size M5
Type Ring terminal
