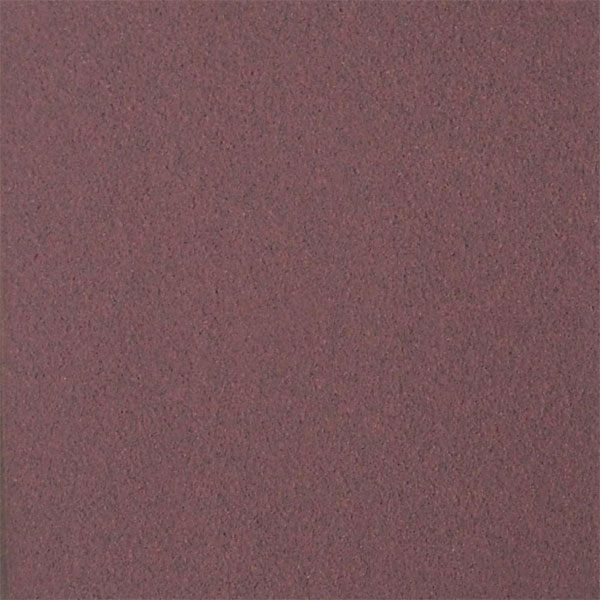

Kerafol SOFTTHERM86/525120X200X0.5 86/525 Thermal Pad 5.5W/mK Gap Fill

A 120 x 200 x 0.5mm Softtherm 86-525 thermal pad that is characterised by very good compressability, low thermal resistance and excellent heat dissipation. Designed for optimal thermal connections in computing and high performance automotive technologies where the outstanding thermal conductivity and formability give excellent thermal management performance while reducing mechanical stress on power components.

• Compensates for component size variations
• Optimised thermal transition
• Flame class UL 94V-0

Type	Thermally conductive pad
Thermal Conductivity	5.5W/mK
Colour	Violet
Maximum Temperature	180°C
Min. temperature	-40°C
