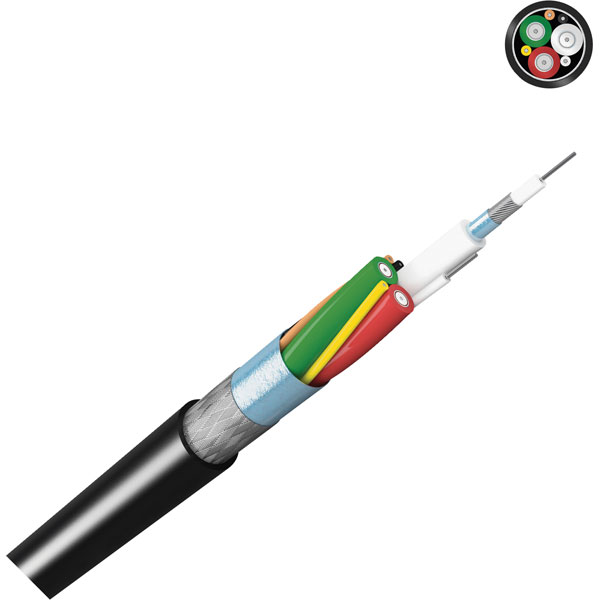

Kabeltronik 843750420 3/4Mini PVC Black 3x Video + 4x Signal

This cable is ideal for the transmission of RGB signals and control instructions and has maximum protection against interference due to double screening of the video elements. It is supplied in 3x video + 4x signal option.

• Colour: Black
• Conductor insulation: PVC
• Halogen free: No
• Product Specifications: Characteristic impendance: 75Ω
• Capacity: approx. 75pF/m
• Attenuation (approx. XX db/100m): 1MHz: 2,3; 10MHz: 6,5
• Temperature range: static: -20°C to +70°C dynamic: -5°C to +70°C
• Bending radius: min. 12 x O.D.
• RoHS compliant: yes
• Shielded: Yes
• Sold per metre: Yes

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.

Colour	Black
Number of Cores	7
AWG	Not Specified
Conductor Stranding	Finely stranded
Insulation Material	Polyvinyl Chloride (PVC)
Length	Sold per metre
Capacity	approx. 75pF/m
