Kabeltronik 10201400 LiYY Control Lead 2x0.14mm² PVC Grey Sold/Metre

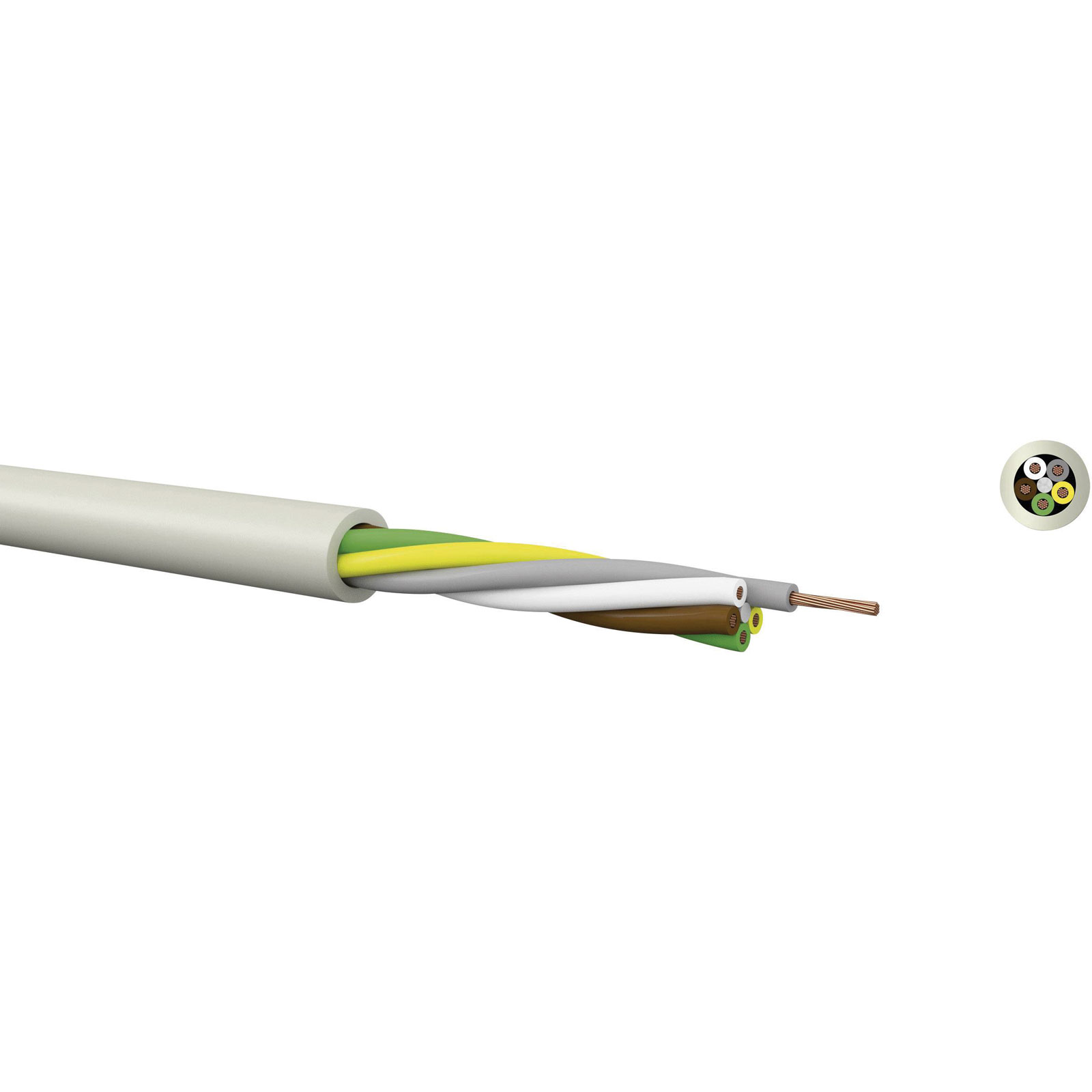

Image Representative of Range

Kabeltronik 10201400 LiYY Control Lead 2x0.14mm² PVC Grey Sold/Metre

Kabeltronik
Standard range
Order Code:

12-1957

Brand: Kabeltronik MPN: 10201400 EAN-13: 2050001708120
Qty Unit Price (Ex VAT)
1+ £0.771
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
198 in stock, despatched in 4 working days

The Kabeltronik LiYY control lead is a flexible cable with two cores of 0.14 mm² each, available in grey and sold per metre. Manufactured by Kabeltronik, it is designed for use in control, signal, and data transmission applications. Ideal for electronics and telecommunications environments, this lead ensures reliable performance in low-voltage settings.
Type Control lead
Bend radius (no. of ODs for fixed installation) 15
Bend radius (no. of ODs for flexible installation) 15
Cable features Flexible
Cable type LiYY
Core layout 18 x 0.10 mm
Cross section 2 x 0.14 mm²
Cross section (each core) 0.14mm²
Factory colour Grey
Halogen-free No
Insulation PVC according to VDE 0207
Insulation material PVC
Manufacturer part # 10201400
Max. length sold by the metre 100m
Max. temperature range (fixed installation) +70°C
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -30°C
Min. temperature range (flexible installation) -5°C
Misc Attribute 10201400
No. of leads 2
Nominal voltage 500V
Number-coded No
Outside Ø 3.40mm
Packaged No
Sold per metre Yes
Suited for cable carriers No
