JST ZHR-9 Socket Housing 9-Pin 1.50mm Detachable PCB Connection

JST
Standard range
Order Code:

04-4980

Brand: JST MPN: ZHR-9
Qty Unit Price (Ex VAT)
1+ £0.130
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
125 in stock, despatched in 4 working days

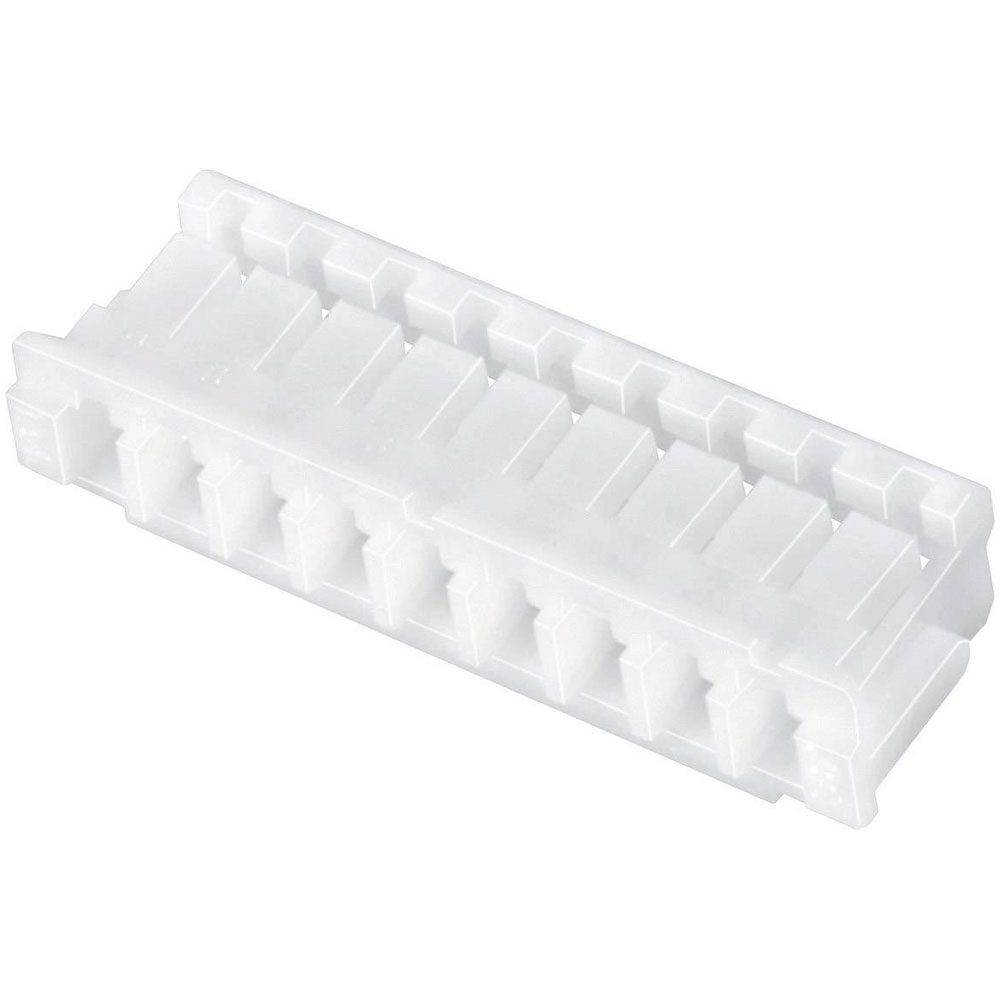

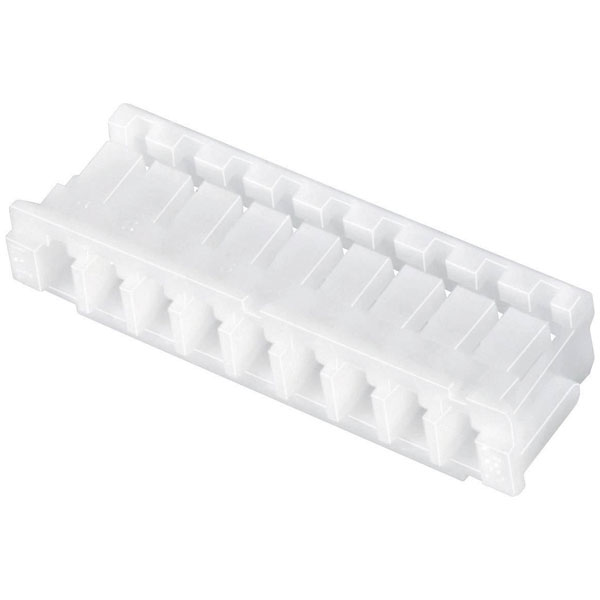

The JST socket housing cable ZHR-9 features nine pins with a contact spacing of 1.50 mm. It is a compact connector, measuring 15x3.4x4.2mm, suitable for PCB applications. Typical uses include electronic components and connectors in various circuit assemblies.
No. of rows 1
Case material Polyamide
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Socket, straight
Contact material Copper alloy
Cross section 0.032 - 0.13mm²
CS 1.50mm
Dim (L x W x H) 15 x 3.4 x 4.3 mm
Factory colour Ecru
Height 4.3mm
Industrial packaging No
Insulation material Polyamide
Length 15mm
Manufacturer part # ZHR-9
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 ZHR-9
Nominal current 1A
Nominal current - rounded value 1A
Nominal current (details) 1A
Nominal voltage (details) 50V AC
Pins 9
Pins per row 9
RoHS-compliant Yes
Series ZHR
Total number of pins 9
Type Socket housing cable
Width 3.4mm
