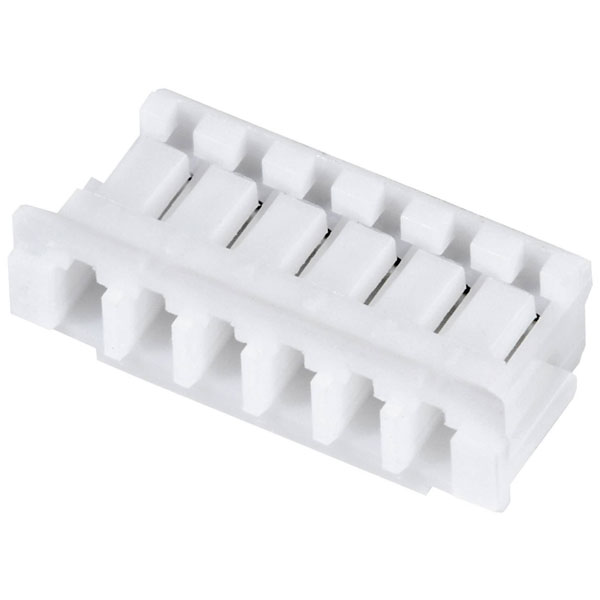

JST ZHR-6 Socket Housing Cable 6 Pins 1.50 mm PCB Connection

MPN: ZHR-6
Brand: JST
EAN-13: 2050000918032
Order Code: 04-4977
Country of Origin: South Korea

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
50+	£0.047

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 178 in stock

Product Details
Product Range
Data Sheets
Quick Quote

JST's socket housing cable ZHR-6 features six pins with a contact spacing of 1.50 mm. It measures 10.5 x 3.4 x 4.2 mm and is used in PCB connectors, making it suitable for electronic and telecommunication applications. This component is identified by Manufacturer Part Number 800228 and is essential for secure and reliable electrical connections.

Type	Socket housing cable
Pitch	4.2mm
Number of Ways	6
Number of Rows	1
Mounting Type	Cable mount
Mounting Direction	Straight
Case Material	Polyamide
Colour	Ecru
Connection	Crimp
Connector contact surface	Tin plated
Connector System	wire-to-board
Connector Type	Socket, straight
Contact Material	Copper alloy
Cross Section	0.032 - 0.13mm²
CS	1.50mm
Dimensions	(L x W x H) 10.5 x 3.4 x 4.3 mm
Height	4.3mm
Industrial packaging	No
Insulation Material	Polyamide
Length	10.5mm
Material (details)	PA 66 UL94V-0
Misc Attribute 1	Connector pin strip, straight
Nominal Current	1A
Nominal current - rounded value	1A
Nominal current (details)	1A
Nominal voltage (details)	50V AC
Pins per row	6
Series	ZHR
Width	3.4mm
