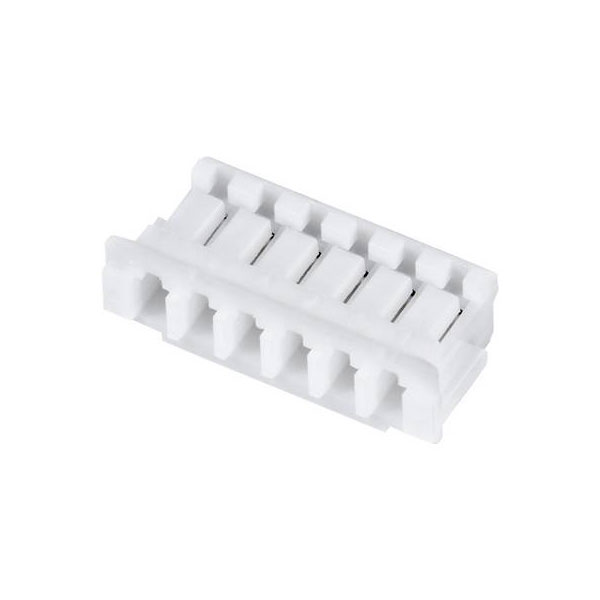

JST ZHR-4 Socket Housing Cable 4 Pins 1.50mm Contact Spacing

Image Representative of Range

JST ZHR-4 Socket Housing Cable 4 Pins 1.50mm Contact Spacing

JST
Order Code:

04-4975

Brand: JST MPN: ZHR-4 EAN-13: 2050000918018
Qty Unit Price (Ex VAT)
100+ £0.060
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
344 in stock, despatched in 4 working days

The JST socket housing cable ZHR-4 features four pins with a contact spacing of 1.50 mm, measuring 7.5 x 3.4 x 4.2 mm. It is typically used in connectors for printed circuit boards. This product is ideal for situations that require reliable connections in compact electronic components.
Type Socket housing cable
Number of Ways 4
Number of Rows 1
Colour Ecru
Case Material Polyamide
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Copper alloy
Cross Section 0.032 - 0.13mm²
CS 1.50mm
Dimensions (L x W x H) 7.5 x 3.4 x 4.3 mm
Height 4.3mm
Industrial packaging No
Insulation Material Polyamide
Length 7.5mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 1A
Nominal current - rounded value 1A
Nominal current (details) 1A
Nominal voltage (details) 50V AC
Pins per row 4
Series ZHR
Width 3.4mm
