JST ZHR-3 Socket Housing Cable 3 Pins 1.50mm Spacing Audible Click

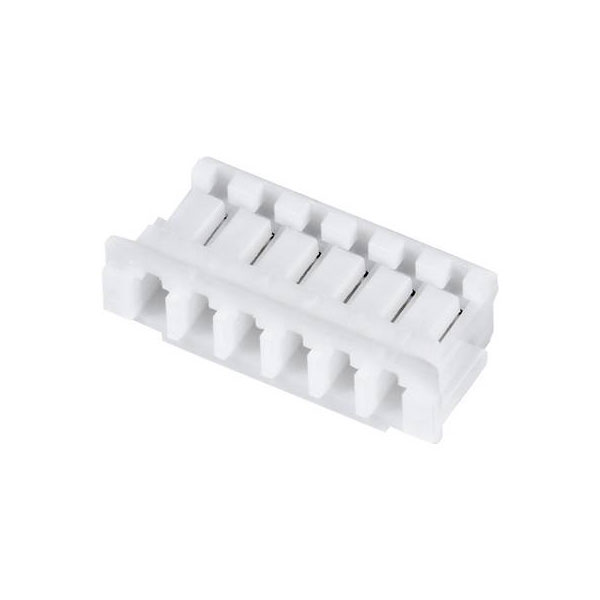

Image Representative of Range

JST ZHR-3 Socket Housing Cable 3 Pins 1.50mm Spacing Audible Click

JST
Order Code:

04-4974

Brand: JST MPN: ZHR-3 EAN-13: 2050000918001
Qty Unit Price (Ex VAT)
100+ £0.050
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
990 in stock, despatched in 4 working days

The JST ZHR-3 socket housing has a total of 3 pins with a contact spacing of 1.50 mm. Manufactured by JST, it measures 6x3.4x4.2 mm and is commonly used in PCB connectors. It is ideal for installations requiring compact and reliable connections in electronic devices.
Type Socket housing cable
Number of Ways 3
Number of Rows 1
Colour Ecru
Case Material Polyamide
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Copper alloy
Cross Section 0.032 - 0.13mm²
CS 1.50mm
Dimensions (L x W x H) 6 x 3.4 x 4.3 mm
Height 4.3mm
Industrial packaging No
Insulation Material Polyamide
Length 6mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 1A
Nominal current - rounded value 1A
Nominal current (details) 1A
Nominal voltage (details) 50V AC
Pins per row 3
Series ZHR
Width 3.4mm
