JST S5B-ZR (LF)(SN) ZH Pin Strip 5-Pin 1.50mm Spacing Audible Click Solderable

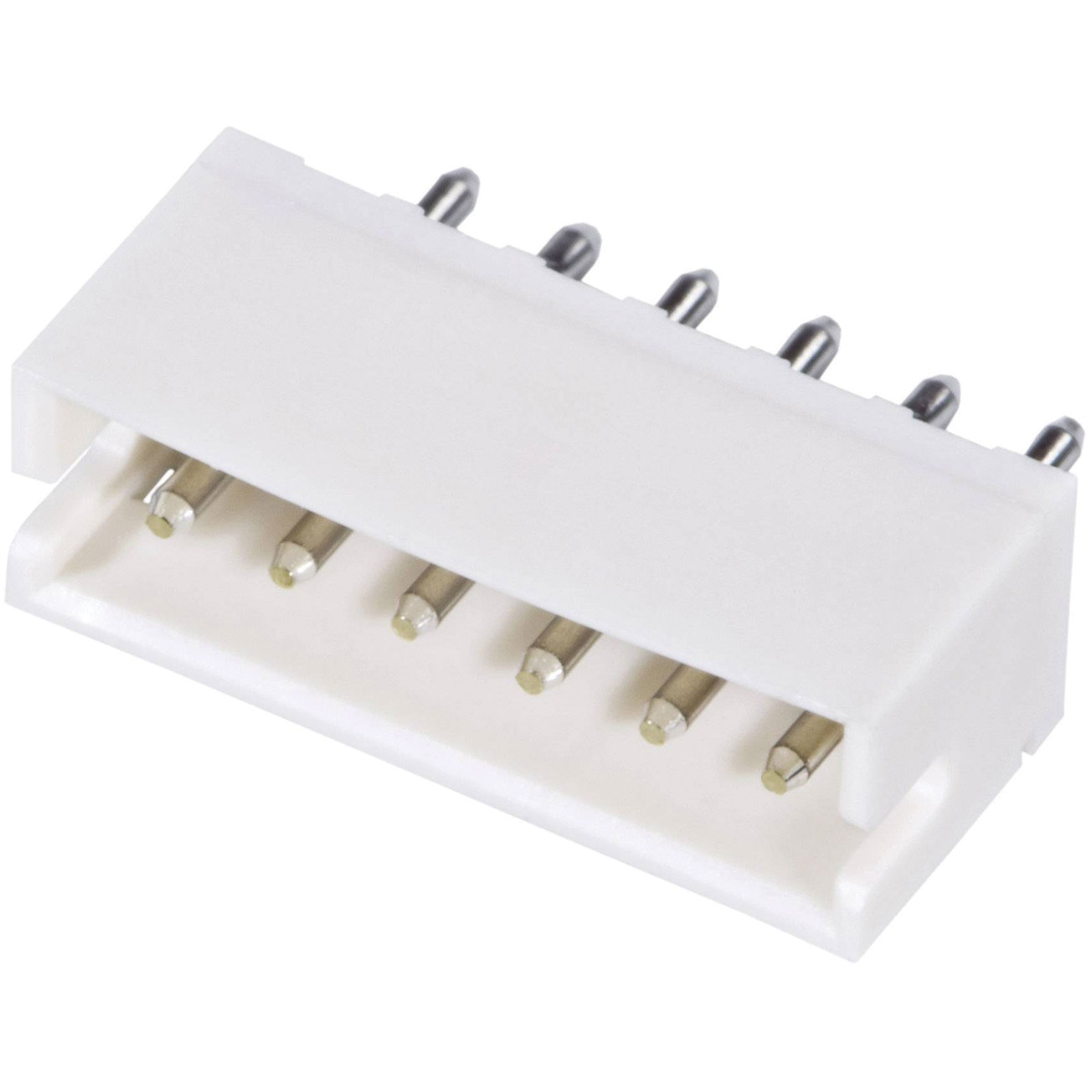

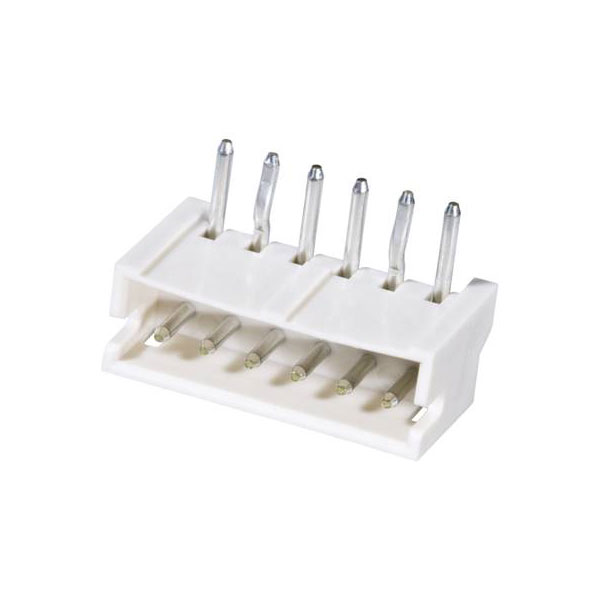

Image Representative of Range

JST S5B-ZR (LF)(SN) ZH Pin Strip 5-Pin 1.50mm Spacing Audible Click Solderable

JST
Extended range
Order Code:

04-4938

Brand: JST MPN: S5B-ZR (LF)(SN)
Qty Unit Price (Ex VAT)
1+ £0.388
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 4 weeks

The JST precision-built pin strip, model S5B-ZR (LF)(SN), features a total of 5 pins with contact spacing of 1.50 mm. Measuring 9x3.5x7.2 mm, it is an angled connector strip typically used in PCB applications. This component is essential in electronics for establishing reliable electrical connections.
No. of rows 1
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector type Pin strip, right angle
Contact material Phosphor bronze
Cross section 0.032 - 0.13mm²
CS 1.50mm
Dim (L x W x H) 9 x 3.5 x 6.4 mm
Factory colour Ecru
Height 6.4mm
Industrial packaging No
Insulation material Polyamide
Length 9mm
Manufacturer part # S5B-ZR (LF)(SN)
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 S5B-ZR (LF)(SN)
Nominal current 1A
Nominal current - rounded value 1A
Nominal current (details) 1A
Nominal voltage (details) 50V AC
Pin Ø 0.5mm
Pin shape Circular
Pins 5
Pins per row 5
RoHS-compliant Yes
Series ZH
Total number of pins 5
Type Built-in pin strip (precision)
Width 3.5mm
