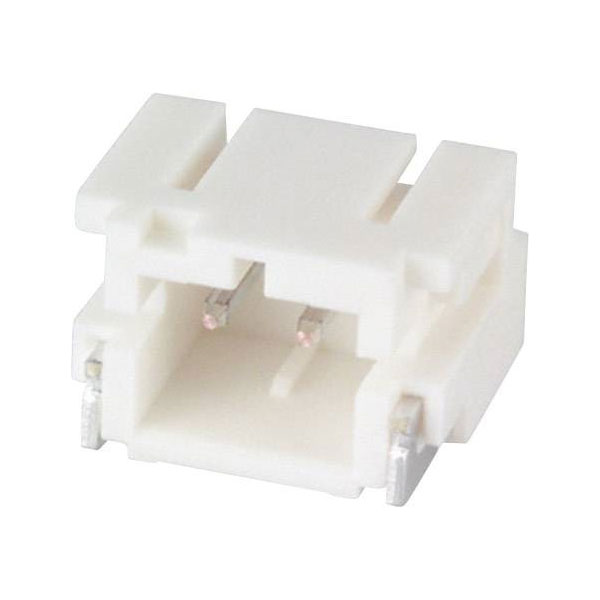

JST S2B-PH-SM4-TB (LF)(SN) PH 2-Pin 2mm Pitch PCB Pin Strip with Reverse Prot.

JST
Extended range
Order Code:

04-4926

Brand: JST MPN: S2B-PH-SM4-TB (LF)(SN)
Qty Unit Price (Ex VAT)
1+ £0.436
125+ £0.310
500+ £0.280
2500+ £0.260
5000+ £0.250
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 8 weeks

The JST S2B-PH-SM4-TB (LF)(SN) is a built-in pin strip from the PH series with 2 pins and a contact spacing of 2 mm. Manufactured by JST, it is typically used in electronic applications requiring compact and reliable connections. Its design is suitable for use in consumer electronics and circuit board assemblies.
No. of rows 1
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector type Pin strip, right angle
Contact material Phosphor bronze
Cross section 0.05 - 22mm²
CS 2mm
Dim (L x W x H) 5.9 x 5 x 9.4 mm
Factory colour Ecru
Height 9.4mm
Industrial packaging No
Insulation material Polyamide
Length 5.9mm
Manufacturer part # S2B-PH-SM4-TB (LF)(SN)
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 S2B-PH-SM4-TB (LF)(SN)
Nominal current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pin Ø 0.5mm
Pin shape Square
Pins per row 2
RoHS-compliant Yes
Series PH
Total number of pins 2
Type Built-in pin strip (standard)
Width 5mm
