JST PHR-6 Socket Housing 6 Pins 2mm Spacing Pre-Tin Coating

JST
Order Code:

04-4911

Brand: JST MPN: PHR-6 EAN-13: 2050000918377
Qty Unit Price (Ex VAT)
50+ £0.060
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,358 in stock, despatched in 4 working days

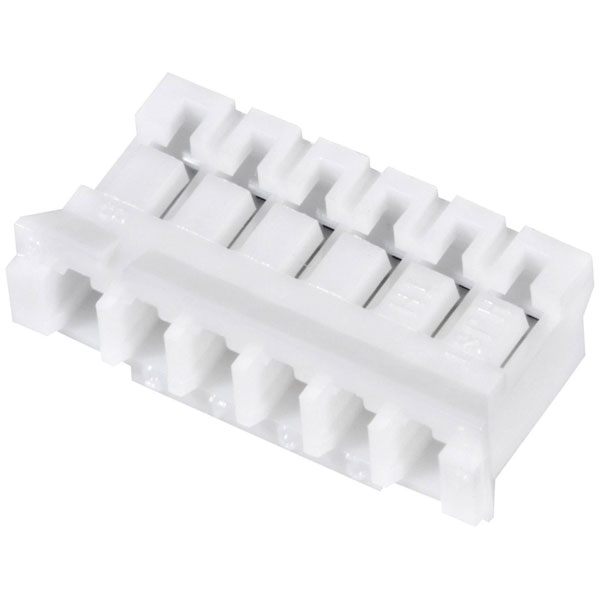

The JST PHR-6 socket housing is designed for PCB connectors with six pins and a contact spacing of 2 mm. Measuring 13.8 x 4.5 x 6.4 mm, this component is suitable for compact electronic applications. Commonly used in electronics manufacturing, it facilitates secure and reliable connections on printed circuit boards.
Type Socket housing cable
Number of Ways 6
Number of Rows 1
Colour Ecru
Case Material Polyamide
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Copper alloy
Cross Section 0.05 - 22mm²
CS 2mm
Dimensions (L x W x H) 13.8 x 13.8 x 9.4 mm
Height 9.4mm
Industrial packaging No
Insulation Material Polyamide
Length 13.8mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pins per row 6
Series PHR
Width 13.8mm
