JST PHR-3 Socket Housing 3 Pins 2mm Spacing Click & Reverse Prot

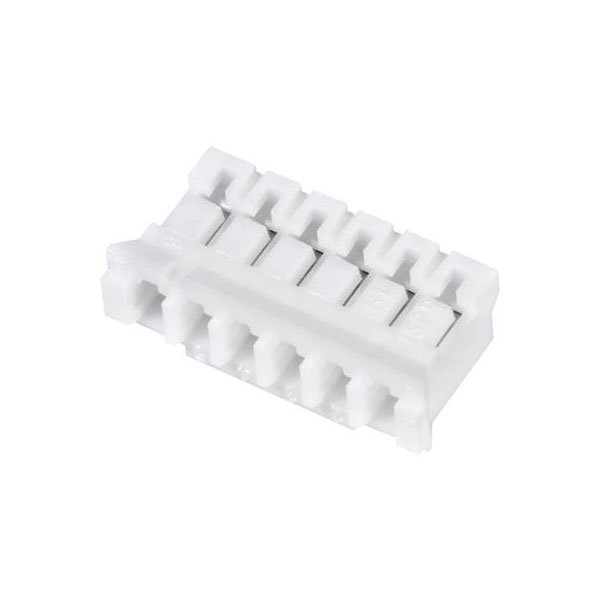

Image Representative of Range

JST PHR-3 Socket Housing 3 Pins 2mm Spacing Click & Reverse Prot

JST
Order Code:

04-4908

Brand: JST MPN: PHR-3 EAN-13: 2050000918346
Qty Unit Price (Ex VAT)
100+ £0.067
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,089 in stock, despatched in 4 working days

The JST socket housing cable PHR-3 is a connector with 3 pins and 2 mm contact spacing. It measures 7.8x4.5x6.4 mm and is typically used in PCB applications. This housing is ideal for securely connecting wires to electronic components.
Type Socket housing cable
Number of Ways 3
Number of Rows 1
Colour Ecru
Case Material Polyamide
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Copper alloy
Cross Section 0.05 - 22mm²
CS 2mm
Dimensions (L x W x H) 7.8 x 7.8 x 9.4 mm
Height 9.4mm
Industrial packaging No
Insulation Material Polyamide
Length 7.8mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 2A
Nominal current - rounded value 2A
Nominal current (details) 2A
Nominal voltage (details) voltage:100V AC
Pins per row 3
Series PHR
Width 7.8mm
