JST BZH-003T-P0.5 ZH Socket Contact 1-Pin Reverse Voltage Protection

Image Representative of Range

JST BZH-003T-P0.5 ZH Socket Contact 1-Pin Reverse Voltage Protection

JST
Standard range
Order Code:

12-1735

Brand: JST MPN: BZH-003T-P0.5 EAN-13: 2050000918100
Qty Unit Price (Ex VAT)
1+ £0.040
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2,188 in stock, despatched in 4 working days

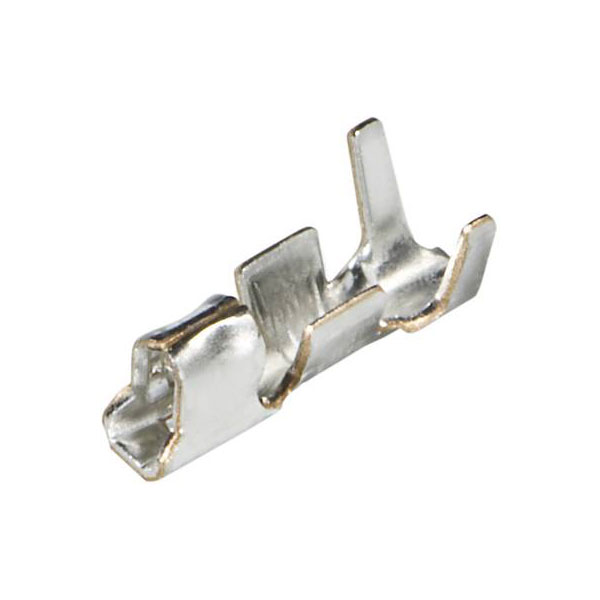

The JST socket contact BZH-003T-P0.5 is a crimp contact with dimensions of 4x1.1x1.5mm designed for PCB connectors. With a total of 1 pin, it is suitable for applications requiring single connections. Typically used in electronic components and connectors, it is identified by part number 801647.
No. of rows 1
AWG (min.) 32
AWG max. 28
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Socket, straight
Contact material Phosphor bronze
Cross section 0.032 - 08mm²
Factory colour Silver
Industrial packaging No
Length 4mm
Manufacturer part # BZH-003T-P0.5
Material (details) PA 66 UL94V-0
max. cross section 0.08mm²
Min. cross section 0.032mm²
Misc Attribute 1 Socket-crimp contact
Misc Attribute 2 BZH-003T-P0,5
Nominal current 1A
Nominal current - rounded value 1A
Nominal current (details) 1A
Nominal voltage (details) 50V AC
Pin Ø 0.5mm
Pin shape Circular
Pins per row 1
RoHS-compliant Yes
Series ZH
Total number of pins 1
Type Socket contact
