JST BVH-41T-P1.1 VH Socket Contact 1 Pin Vibration-Proof Solderable

Standard range

Order Code:

12-1729

Brand: JST MPN: BVH-41T-P1.1 EAN-13: 2050000917844

RoHS Compliant
Country of Origin: Japan
Free UK shipping available
View Full Product Range (4)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£0.198

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

2,688 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

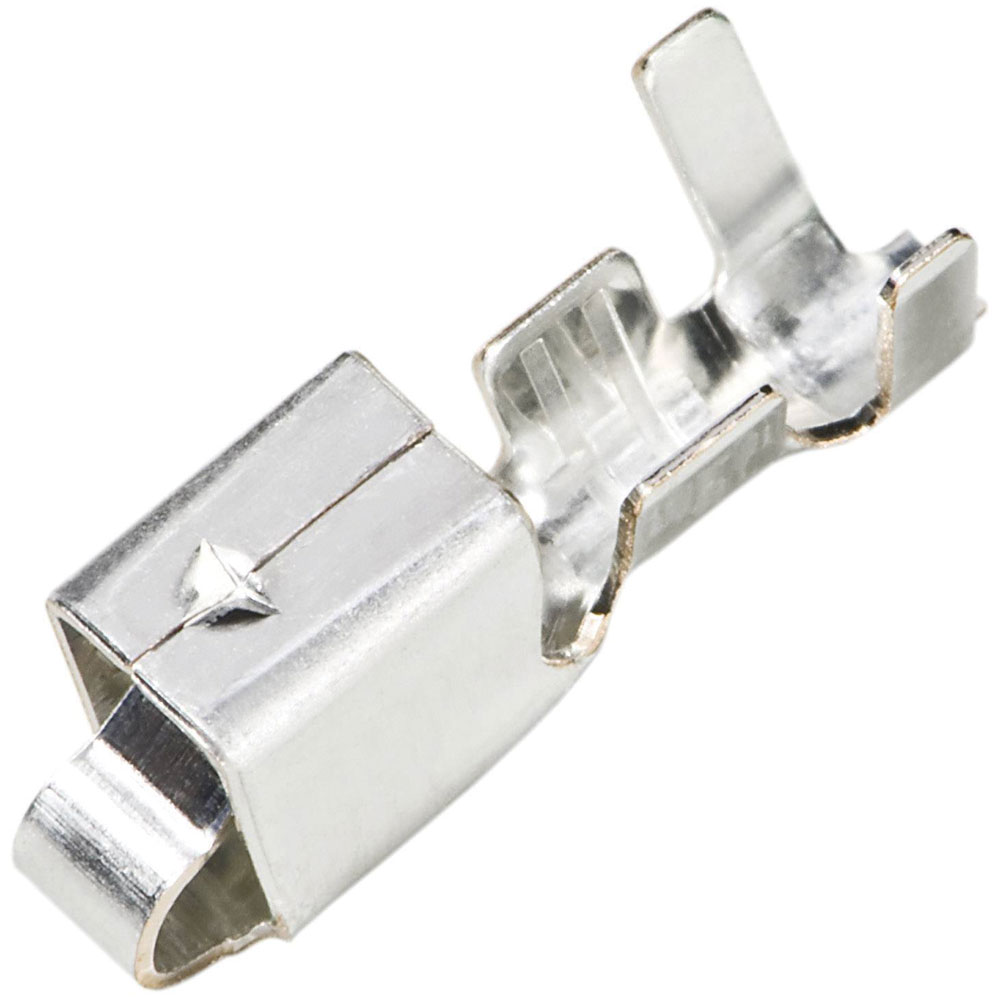

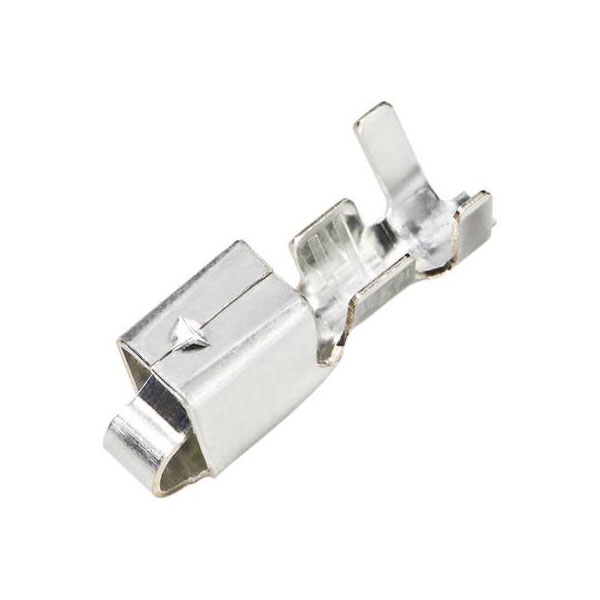

The JST socket contact VH BVH-41T-P1.1 is a single-pin crimp contact manufactured by JST. It measures 10.6 x 3 x 3.8 mm and is suitable for wire sizes from 0.5 to 1.25 sqmm. This contact is typically used in PCB connectors for a variety of electronic applications.

No. of rows	1
AWG (min.)	20
AWG max.	16
Board contact surface	Tin plated
Connection	Crimp
Connector contact surface	Tin plated
Connector system	wire-to-board
Connector type	Socket, straight
Contact material	Phosphor bronze
Cross section	25 -1.5 mmmm²
Dim	(W x H) 14.6 mm x 8.5 mm
Factory colour	Silver
Height	8.5mm
Industrial packaging	No
Manufacturer part #	BVH-41T-P1.1
Material (details)	PA 66 UL94V-0
max. cross section	1.25mm²
Min. cross section	0.50mm²
Misc Attribute 1	Connector pin strip, straight
Misc Attribute 2	BVH-41T-P1.1
Nominal current	10A
Nominal current - rounded value	10A
Nominal current (details)	10A
Nominal voltage	250V AC
Nominal voltage (details)	250V AC
Pin Ø	1.14mm
Pin shape	Square
Pins per row	1
RoHS-compliant	Yes
Series	VH
Total number of pins	1
Type	Socket contact
Width	14.6mm
