JST B9B-ZR (LF)(SN) ZH 9-Pin 1.50mm Pin Header Audible Click and Polarity Key

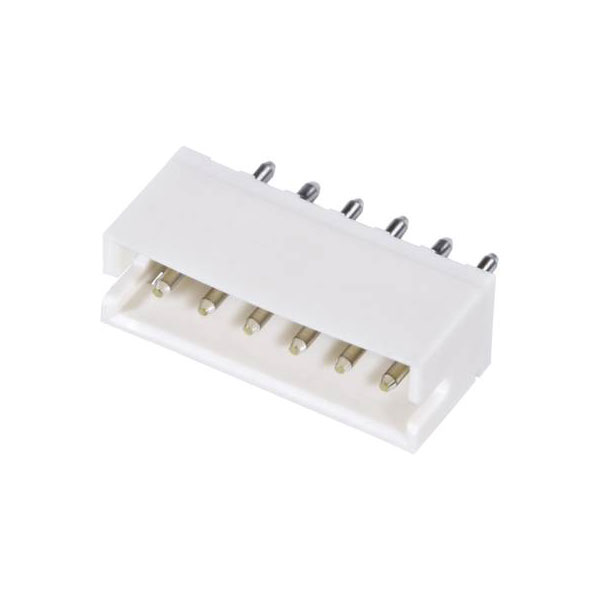

Image Representative of Range

JST B9B-ZR (LF)(SN) ZH 9-Pin 1.50mm Pin Header Audible Click and Polarity Key

JST
Standard range
Order Code:

04-4892

Brand: JST MPN: B9B-ZR (LF)(SN)
Qty Unit Price (Ex VAT)
1+ £0.589
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
128 in stock, despatched in 4 working days

The JST B9B-ZR (LF)(SN) is a precision built-in pin strip connector with 9 pins and 1.50 mm contact spacing. Manufactured by JST, it features a compact design with dimensions of 15x3.5x7.2mm. This connector is typically used in PCB applications requiring reliable connection solutions.
No. of rows 1
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Pin strip, straight
Contact material Phosphor bronze
Cross section 0.032 - 0.13mm²
CS 1.50mm
Dim (L x W x H) 15 x 3.5 x 7.2 mm
Factory colour Ecru
Height 7.2mm
Industrial packaging No
Insulation material Polyamide
Length 15mm
Manufacturer part # B9B-ZR (LF)(SN)
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 B9B-ZR (LF)(SN)
Nominal current 1A
Nominal current - rounded value 1A
Nominal current (details) 1A
Nominal voltage (details) 50V AC
Pin Ø 0.5mm
Pin shape Circular
Pins 9
Pins per row 9
RoHS-compliant Yes
Series ZH
Total number of pins 9
Type Built-in pin strip (precision)
Width 3.5mm
