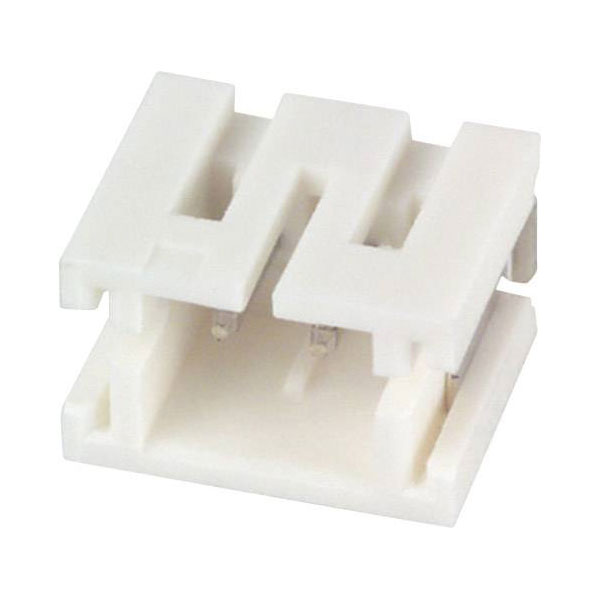

JST B4B-ZR-SM4-TF (LF)(SN) M4-TF Pin Strip 4 Pins 1.50mm Audible Click

JST
Standard range
Order Code:

04-4871

Brand: JST MPN: B4B-ZR-SM4-TF (LF)(SN)
Qty Unit Price (Ex VAT)
1+ £0.280
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
999 in stock, despatched in 4 working days

The JST built-in pin strip (precision) with the part number B4B-ZR-SM4-TF (LF)(SN) features four pins and a contact spacing of 1.50 mm. It is typically used in electronic applications requiring precise and compact connections. This component is ideal for small-scale circuit board assemblies or device interfaces.
No. of rows 1
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Pin strip, straight
Contact material Phosphor bronze
Cross section 0.032 - 0.13mm²
CS 1.50mm
Dim (L x W x H) 9 x 3.5 x 5.2 mm
Factory colour Ecru
Height 5.2mm
Industrial packaging No
Insulation material Polyamide
Length 9mm
Manufacturer part # B4B-ZR-SM4-TF (LF)(SN)
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 B4B-ZR-SM4-TF (LF)(SN)
Nominal current 1A
Nominal current - rounded value 1A
Nominal current (details) 1A
Nominal voltage (details) 50V AC
Pin Ø 0.5mm
Pin shape Circular
Pins per row 4
RoHS-compliant Yes
Series ZR
Total number of pins 4
Type Built-in pin strip (precision)
Width 3.5mm
