JST B10B-ZR (LF)(SN) ZH Pin Strip 1.50mm Spacing 10-Pin Audible Click

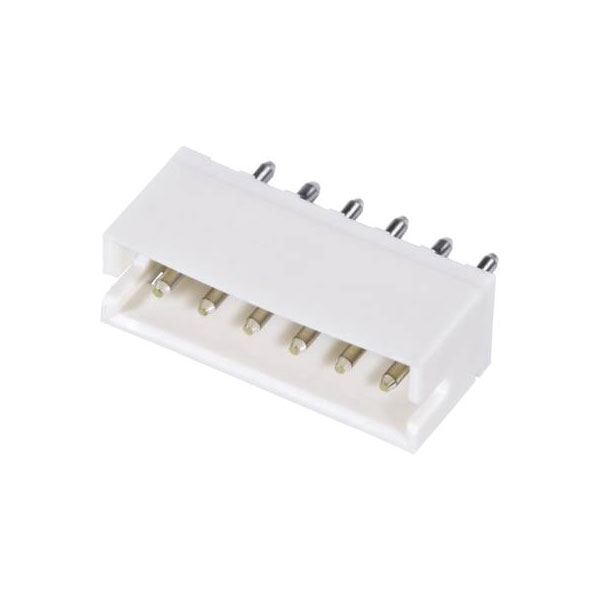

Image Representative of Range

JST B10B-ZR (LF)(SN) ZH Pin Strip 1.50mm Spacing 10-Pin Audible Click

JST
Order Code:

04-4847

Brand: JST MPN: B10B-ZR (LF)(SN) EAN-13: 2050000918216
Qty Unit Price (Ex VAT)
10+ £0.620
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
235 in stock, despatched in 4 working days

The JST built-in pin strip (precision) features 10 pins with a contact spacing of 1.50 mm, measuring 16.5x3.5x7.2 mm in size. Manufactured by J.S.T., this straight connector pin strip is commonly used in printed circuit board (PCB) applications. Its precision and compact design suit a variety of electronics and component integration needs.
Type Built-in pin strip (precision)
Number of Positions 10
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Colour Ecru
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, straight
Contact Material Phosphor bronze
Cross Section 1.50mm
Dimensions (L x W x H) 16.5 x 3.5 x 7.2 mm
Height 7.2mm
Industrial packaging No
Insulation Material Polyamide
Length 16.5mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 1A
Nominal Voltage 50V AC
Pin Ø 0.5mm
Pin shape Circular
Pins per row 10
Series ZH
Width 3.5mm
