JST 801036 XH Pin Strip 3 Pins 2.50mm Spacing Audible Click Plug

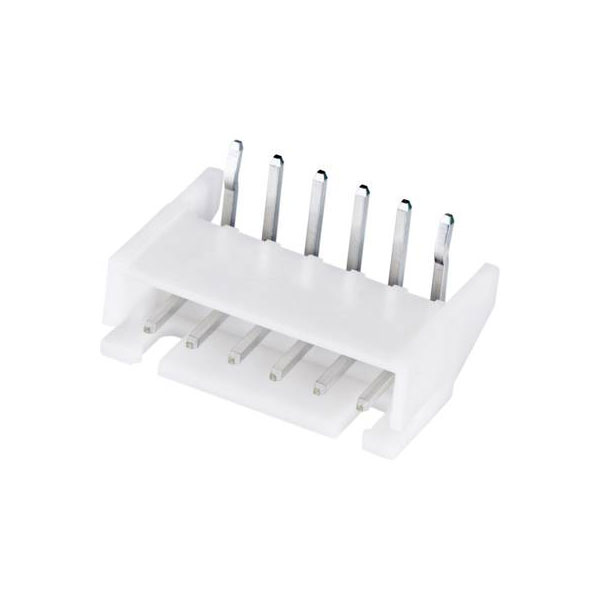

Image Representative of Range

JST 801036 XH Pin Strip 3 Pins 2.50mm Spacing Audible Click Plug

JST
Order Code:

04-4830

Brand: JST MPN: 801036 EAN-13: 2050000917707
Qty Unit Price (Ex VAT)
20+ £0.217
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
361 available to back orderBack-order availability date - 10/01/2026

JST manufactures a 3-way angled header connector with a pin strip standard and a contact spacing of 2.50 mm. It measures 9.9x5.75x10.4 mm and is typically used in PCB applications. This connector is ideal for securely joining electronic components in various devices and equipment.
Type Pin strip (standard)
Number of Positions 3
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Colour Ecru
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, right angle
Contact Material Phosphor bronze
Cross Section 2.50mm
Dimensions (L x W x H) 9.9 x 5.75 x 10.4 mm
Height 10.4mm
Industrial packaging No
Insulation Material Polyamide
Length 9.9mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 3A
Nominal Voltage 250V AC
Pin Ø 0.64mm
Pin shape Square
Pins per row 3
Series XH
Width 5.75mm
