JST 800943 XH Pin Strip 2 Pins 2.50mm Spacing Pre-Tin Coating

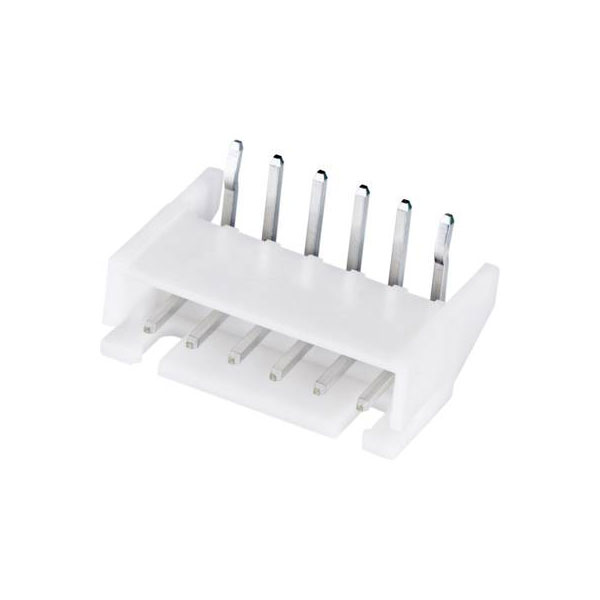

Image Representative of Range

JST 800943 XH Pin Strip 2 Pins 2.50mm Spacing Pre-Tin Coating

JST
Order Code:

04-4829

Brand: JST MPN: 800943 EAN-13: 2050000917691
Qty Unit Price (Ex VAT)
25+ £0.171
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
174 in stock, despatched in 4 working days

The JST standard pin strip XH features two pins with a contact spacing of 2.50 mm and is designed for PCB connectors. Manufactured by JST, it has an angled header, measuring 7.4 x 5.75 x 10.4 mm, ideal for compact electronic applications. This connector is commonly used in components where reliable connections on printed circuit boards are required.
Type Pin strip (standard)
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, right angle
Contact Material Phosphor bronze
Cross Section 0.08 -0.33mm²
CS 2.50mm
Dim (L x W x H) 7.4 x 5.75 x 10.4 mm
Factory colour Ecru
Height 10.4mm
Industrial packaging No
Insulation Material Polyamide
Length 7.4mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal voltage (details) 250V AC
Pin Ø 0.64mm
Pin shape Square
Pins 2
Pins per row 2
Series XH
Total number of pins 2
Width 5.75mm
