JST 800921 XH Pin Strip 5 Pins 2.50mm Spacing Pre-tinned Click Lock

JST
Standard range
Order Code:

04-4827

Brand: JST MPN: 800921
Qty Unit Price (Ex VAT)
1+ £0.264
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
256 in stock, despatched in 4 working days

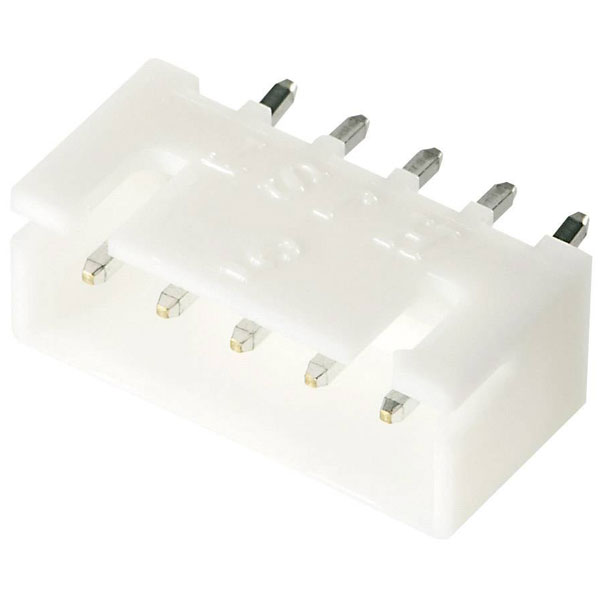

The JST pin strip, part number 800921, is a straight connector with five pins and a contact spacing of 2.50 mm. This component measures 14.9 x 5.75 x 10.4 mm, making it suitable for compact PCB applications. Typical uses include connecting electronic components on printed circuit boards in various consumer electronics and industrial devices.
No. of rows 1
Board contact surface Tin plated
Case material Polyamide
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Pin strip, straight
Contact material Phosphor bronze
Cross section 0.08 -0.33mm²
CS 2.50mm
Dim (L x W x H) 14.9 x 5.75 x 10.4 mm
Factory colour Ecru
Height 10.4mm
Industrial packaging No
Insulation material Polyamide
Length 14.9mm
Manufacturer part # 800921
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 B5B-XH-A (LF)(SN)
Nominal current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal voltage (details) 250V AC
Pin Ø 0.64mm
Pin shape Square
Pins 5
Pins per row 5
RoHS-compliant Yes
Series XH
Total number of pins 5
Type Pin strip (standard)
Width 5.75mm
