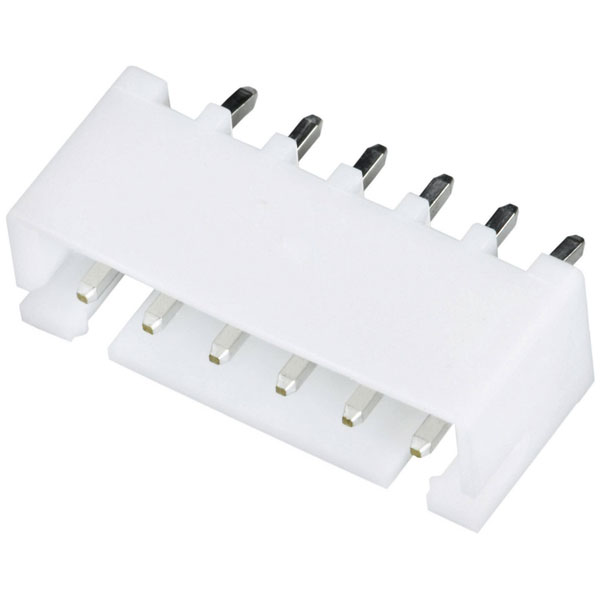

JST 800194 XH Pin Strip 6 Pins 2.50mm Spacing Pre-Tin Coated

JST
Order Code:

04-4815

Brand: JST MPN: 800194 EAN-13: 2050000917646
Qty Unit Price (Ex VAT)
20+ £0.310
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
527 available to back orderBack-order availability date - 15/01/2026

The JST pin strip is a standard connector with six pins and a contact spacing of 2.50 mm, measuring 17.4x5.75x10.4 mm. It is typically used in printed circuit boards and electronic component assemblies where reliable connections are required. Suitable for various electronic applications, this header belongs to the general category of PCB connectors.
No. of Rows 1
No. of Ways 6
Contact Finish Phosphor bronze
Board contact surface Tin plated
Case Material Polyamide
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, straight
Cross Section 0.08 -0.33mm²
CS 2.50mm
Dim (L x W x H) 17.4 x 5.75 x 10.4 mm
Factory colour Ecru
Height 10.4mm
Industrial packaging No
Insulation Material Polyamide
Length 17.4mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal voltage (details) 250V AC
Pin Ø 0.64mm
Pin shape Square
Pins 6
Pins per row 6
Series XH
Type Pin strip (standard)
Width 5.75mm
