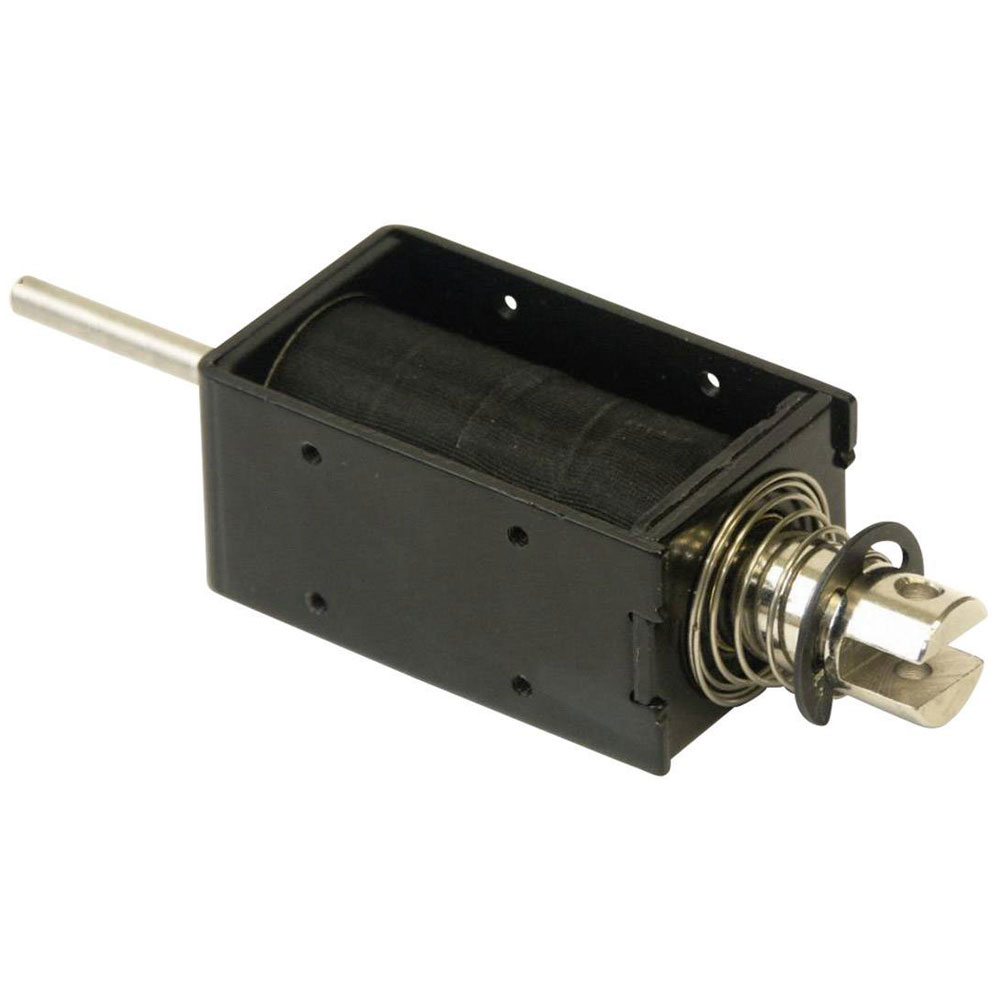

Intertec ITS-LS-5852-D-24VDC Solenoid 24V 16W Light Frame Damping Ring

Intertec
Order Code:

09-5078

Brand: Intertec MPN: ITS-LS-5852-D-24VDC EAN-13: 4064161266275
Qty Unit Price (Ex VAT)
1+ £71.35
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
74 available to back orderBack-order availability date - 12/01/2026

Manufactured by Intertec, the ITS-LS-5852-D-24VDC solenoid operates at 24 V DC and 16 W, with a repelling force range of 5 N/mm to 85 N/mm. It features a motor magnet design and is highly effective for applications requiring precise magnetic force control. Typical uses include automation systems and devices that require reliable actuation and movement control.
Type Solenoid
Coil Voltage 24V DC
Nominal Power 16W
Length 84mm
Width 58mm
Height 52mm
Cable Length 0.42m
Connection Open end cable
Dim (L x W x H) 84 x 58 x 52 mm
Fitting method M3
Initial force 5 N/mm
Misc Attribute 2 repelling
Nominal lift 40mm
Peak force 85 N/mm
Temperature limit 130°C
Thread Size M4
Travel (max.) 40mm
Travel (min.) 30mm
