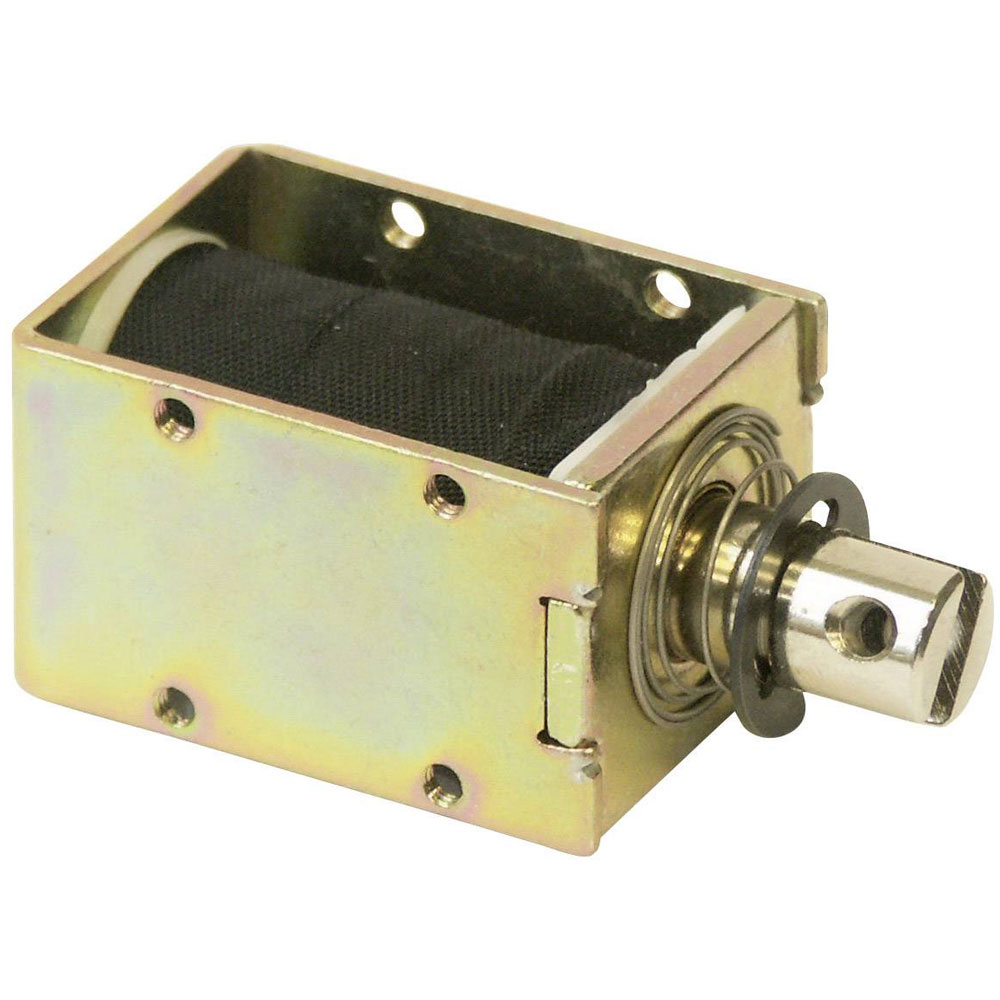

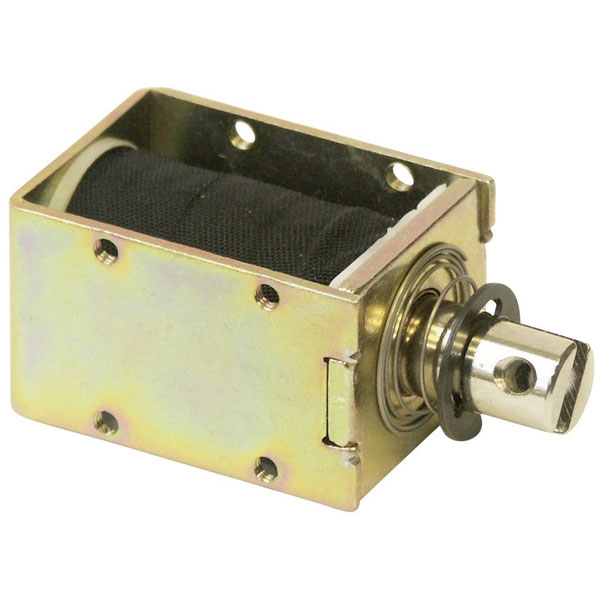

Intertec ITS-LS-1614-Z-12VDC Solenoid 12V DC 2W Light Frame Damping Ring

Intertec
Order Code:

09-5075

Brand: Intertec MPN: ITS-LS-1614-Z-12VDC EAN-13: 4064161266220
Qty Unit Price (Ex VAT)
1+ £10.00
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
67 available to back orderBack-order availability date - 14/01/2026

The Intertec ITS-LS-1614-Z-12VDC solenoid operates at 12 V DC with a power rating of 2 W, providing an attracting force of up to 6.6 N/mm. Manufactured by Intertec, this solenoid is designed for efficient and reliable magnetic performance. It's typically used in automation systems, locking mechanisms, and motorised applications.
Type Solenoid
Coil Voltage 12V DC
Nominal Power 2W
Length 30.2mm
Width 14mm
Height 16mm
Cable Length 0.19m
Connection Open end cable
Dim (L x W x H) 30.2 x 14 x 16 mm
Fitting method M3
Initial force 0.2 N/mm
Misc Attribute 2 attracting
Nominal lift 10mm
Peak force 6.6 N/mm
Temperature limit 130°C
Thread Size M3
Travel (max.) 10mm
Travel (min.) 5mm
