interBär 3656-001.22 Pushbutton 250V AC 16A Off/(On) IP65 Dust/Water-Proof

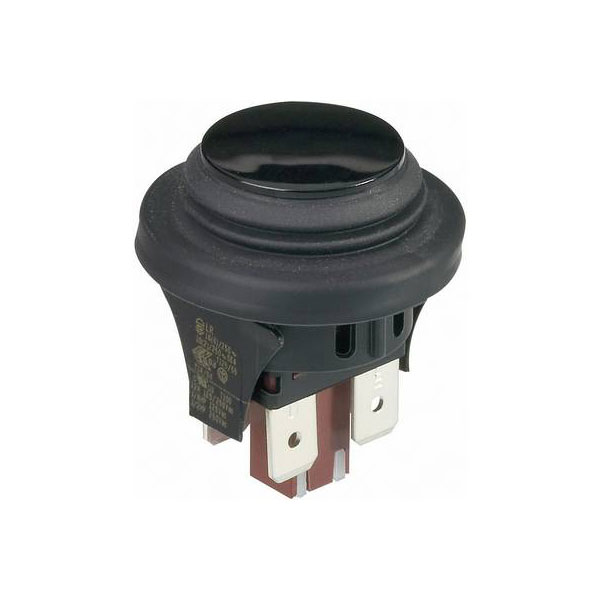

The interBär 3656-001.22 is a black, non-illuminated, 2-pole pushbutton switch suitable for use up to 250 V AC and 16 A. It features a momentary action with an Off/(On) configuration and is rated at IP65 for protection against dust and water. This durable switch is commonly used in industrial machinery and equipment control panels.

Type	Pushbutton
Contact Configuration	2 x Off/(On)
Switch Function	2 makers
Current Rating	16A
Mounting	Panel
Illumination	Non-Illuminated
Board thickness (max.)	2.5mm
Button Diameter	(Without rubber seal) 28 mm (with rubber seal) 34mm
Casing/button colour	Black
IP Rating	IP65
Lighting Type	None
Max. temperature	+125°C
Misc Attribute 1	2pole, not illuminated
Operating Voltage	250V AC
Recess Diameter	25mm
Switch/button features	Protruding
Switching Capacity	16(4) A/250V AC
Switching current (inductive)	4A
Switching Voltage	250V AC
Temperature Range	T 125°C
