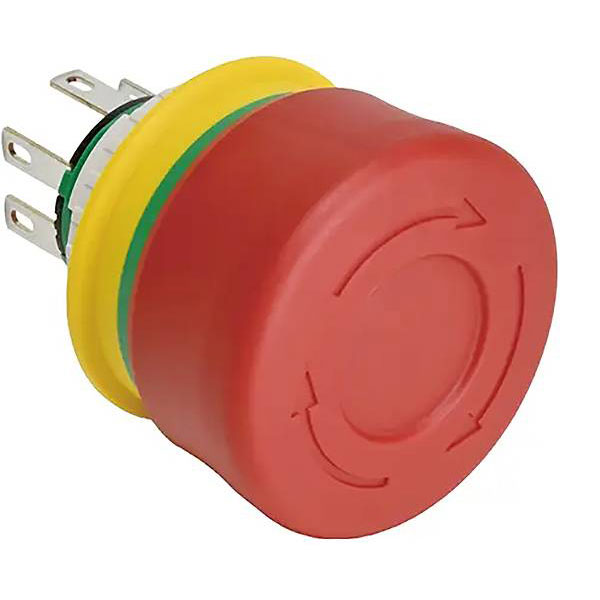

Idec XA1E-BV3SG02TR E-stop Kill Switch 250V 5A IP65/IP67/IP69K 1 pc

IDEC XA1E-BV3SG02TR, alternatively described as 3395515, is a robust E-stop kill switch designed to provide reliable safety control in electrical systems. This unit is rated for up to 250 volts and 5 amperes, ensuring suitable operation within a wide range of industrial environments. It boasts a superior ingress protection rating of IP65/IP67/IP69K, which verifies its resistance against dust and high-pressure water jets, making it apt for harsh conditions often found in manufacturing floors or outdoor applications. The switch is typically utilised in machinery and automation systems where emergency stop functions are crucial for operator safety and equipment protection.

Type	Kill switch
IP Rating	IP65, IP67, IP69K
Actuating Force	50N
Button Diameter	29mm
Colour	Yellow, Red
Contact Material	Silver, gold plated
Content	1
Current Rating	5A
Diameter	29mm
Dimensions	(Ø x L) 29 mm x 48.5 mm
Durability	At least 250 000 inserts
Electrical lifespan	At least 100 000 inserts
Length	48.5mm
Max. temperature	70°C
Maximum Temperature	70°C
Min. temperature	-25°C
Minimum Operating Temperature	-25°C
Nominal Voltage	250V
Weight	15g
Width	27.2mm
