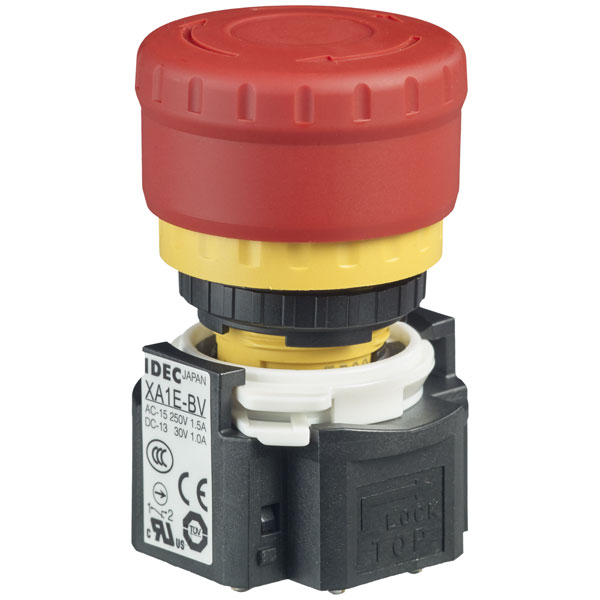

IDEC XA1E-BV312R XA Emergency Stop Switch Non-Illuminated 16mm PullTurn 1NO-2NC

The IDEC XA1E-BV312R is a compact emergency stop switch designed for 16 mm panel cut-outs and equipped with a 29 mm red mushroom-style actuator. It features a push-to-lock and turn-to-reset mechanism and includes a 2NC contact configuration, offering reliable circuit isolation in emergency conditions. The switch incorporates a direct opening action mechanism compliant with IEC 60947-5-5 and IEC 60947-5-1 standards, ensuring mechanical separation of contacts without reliance on spring force.

With a mounting depth of just 27.9 mm, the XA1E-BV312R is ideal for space-constrained applications. It provides IP65-rated front panel protection against dust and water ingress and is certified to UL508, CSA C22.2 No.14, and EN60947-5-5 standards. The switch uses gold-plated silver contacts to minimise contact resistance and maximise durability, supporting a mechanical life of 250,000 operations and an electrical life of 100,000 operations under standard load conditions.

Installation is straightforward using solder/tab terminals and a locking ring with a recommended torque of 0.88 N·m. The switch operates within a temperature range of -25°C to +60°C and supports wire sizes up to 16 AWG. Its robust construction and reliable performance make the XA1E-BV312R a dependable solution for OEMs and system integrators seeking compact and compliant emergency stop functionality.

• Designed for 16 mm panel cut-outs with a 29 mm red mushroom-style actuator
• Features push-to-lock and turn-to-reset operation with 2NC contact configuration
• Compliant with IEC 60947-5-5, IEC 60947-5-1, UL508, CSA C22.2 No.14, and EN60947-5-5 safety standards
• Provides IP65-rated front panel protection and supports operating temperatures from -25°C to +60°C
• Constructed with gold-plated silver contacts and supports 250,000 mechanical operations
• Compact unibody design with a mounting depth of only 27.9 mm for space-constrained applications
