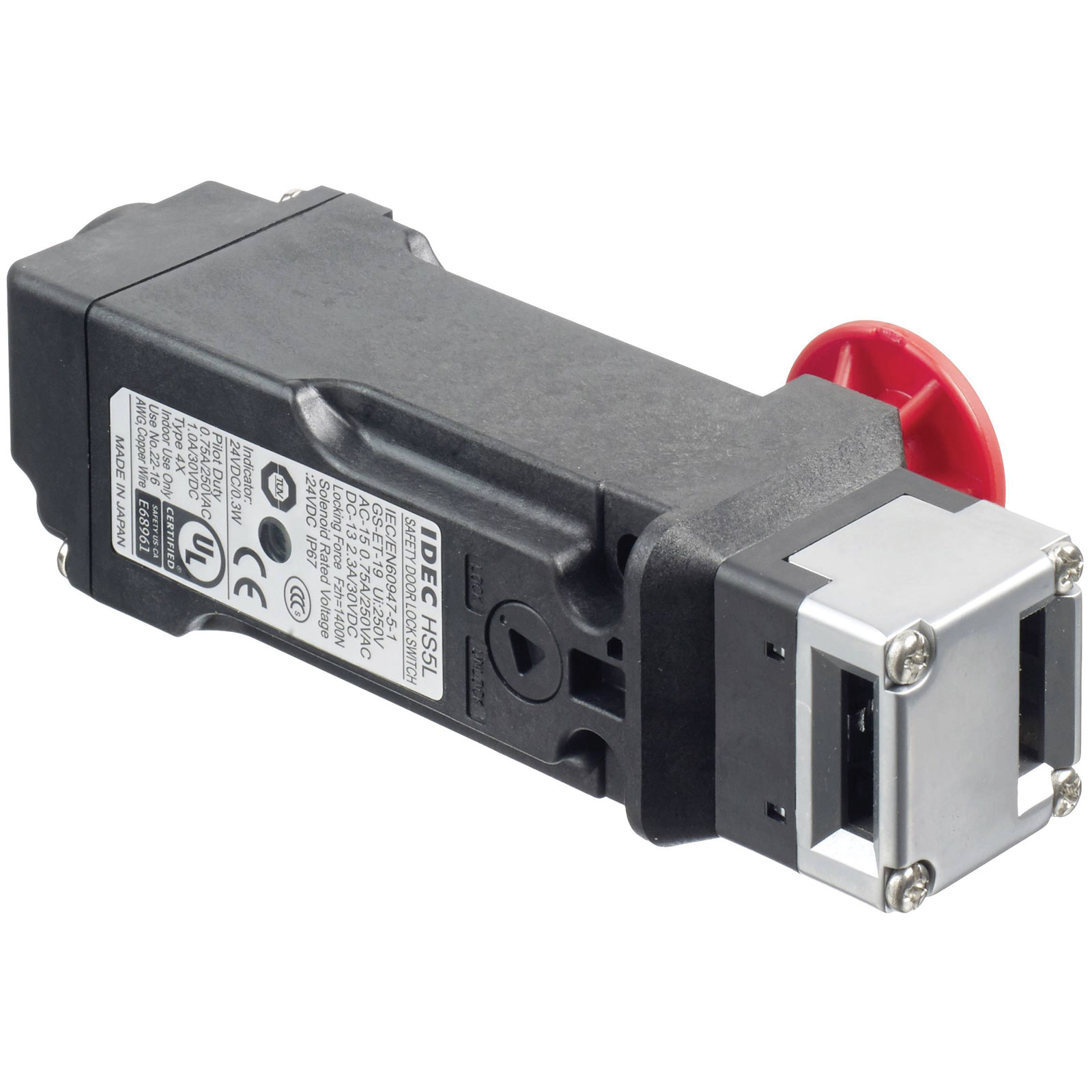

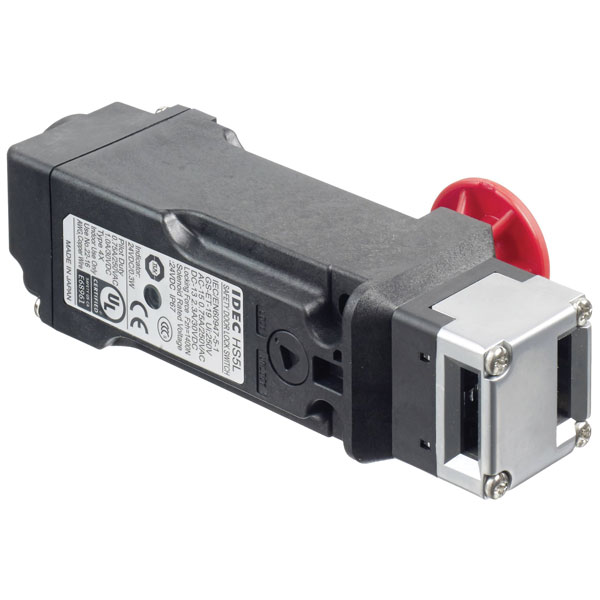

IDEC HS5L-VA7Y4M-G Safety Button Adjustable Lever Magnetic Lock IP67

The Idec HS5L-VA7Y4M-G safety button is an adjustable lever switch with a magnetic lock, rated for 250 V, 125 V, and 30 V at 2.5 A. It features an IP67 rating, making it suitable for environments where dust and moisture protection are essential. This safety button is typically used as an emergency power-off solution in industrial settings to ensure operator safety.

Type	Safety button
Contact Configuration	SPNO
Switch Function	Magnetic lock
Current Rating	2.5A
Panel Cutout Dimensions	N/A
Dim	(L x W x H) 127 x 61.6 x 35 mm
Height	35mm
IP Rating	IP67
Length	127mm
Max. temperature	+55°C
Min. temperature	-20°C
Operation type	Lever (adjustable)
Width	61.6mm
