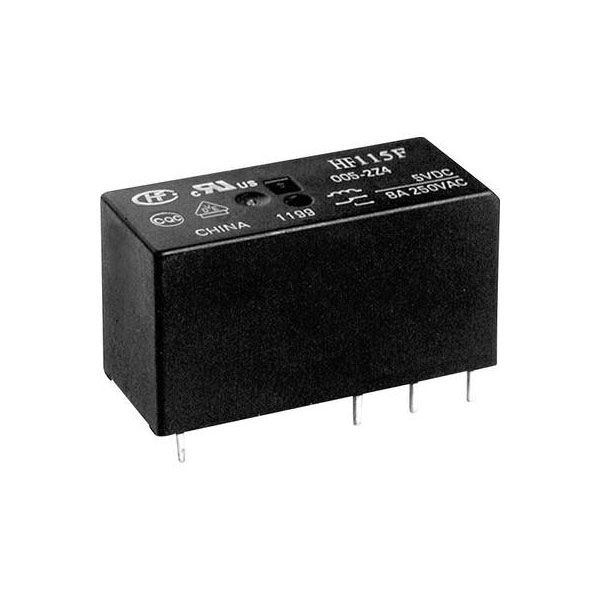

Hongfa HF115F/005-1HS3B(610) PCB Relay 5V DC 16A GWT-Casing EN 60335-1

Image Representative of Range

Hongfa HF115F/005-1HS3B(610) PCB Relay 5V DC 16A GWT-Casing EN 60335-1

Hongfa
Order Code:

09-3979

Brand: Hongfa MPN: HF115F/005-1HS3B(610) EAN-13: 2050001760876
Qty Unit Price (Ex VAT)
3+ £1.80
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
286 in stock, despatched in 4 working days

The Hongfa HF115F/005-1HS3B(610) is a PCB-mounted relay designed for 5 V DC operation with a current rating of 16 A. This mini relay is suitable for a variety of printed circuit board applications. Typical uses include electronic control systems where reliable switching is required.
Coil Voltage 5V DC
Contact Configuration 1NO
Switching Current 16A
Coil Resistance 62Ω
Connection Solder pins
Contact Material AgNi
Control Mode monostable, 1 coil
Dimensions (L x W x H) 29 x 12.7 x 15.7 mm
Height 15.7mm
Length 29mm
Max. pick-up Voltage 7.5V DC
Max. switching capacity 4000VA
Max. temperature +85°C
Min. pick-up Voltage 3.5V DC
Minimum Temperature -40°C
Mounting Type PCB
Type PCB relay
Width 12.7mm
