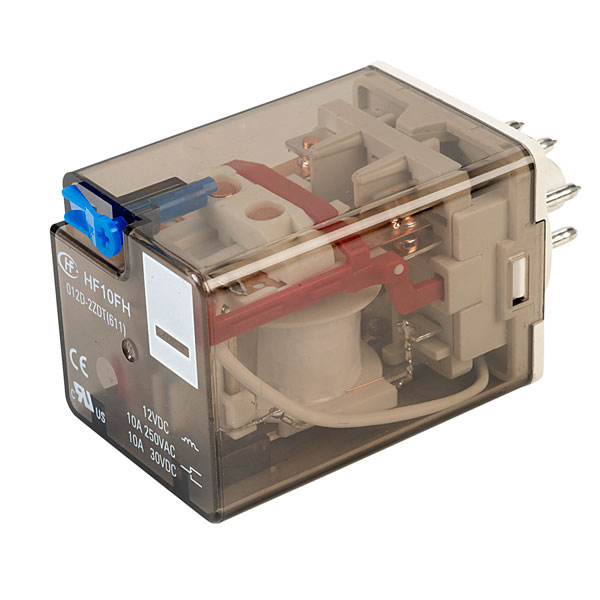

This 10A 12V DC plug-in power relay is a robust device that has high electrical and mechanical endurance. Features include silver alloy contacts and a lockable push to test button.
DC Coil
2-Pole changeover configuration
Industry standard 8-pin termination
Flag indicator and LED built-in
Dust protection
2.5kV Dielectric strength
UL and cUR approvals
Contact Configuration
DPCO
Coil Voltage (DC)
12V
Coil Resistance
95Ω
Rated Voltage (DC)
30V
Rated Voltage (AC)
250V
Rated Current
10A
Switching Power
300W
Mounting Type
Socket
Operating Temperature
-40 to +55°C
Height
55mm
Length
35.5mm
Width
35.5mm
Order Code: {{product.ProductCode}}
Your Ref: {{product.CustomerCode}}
MPN: {{product.ManuPartNo}}
{{attribute.Name}} : {{decodeHtml(attribute.Value)}}
ROHS : Compliant
