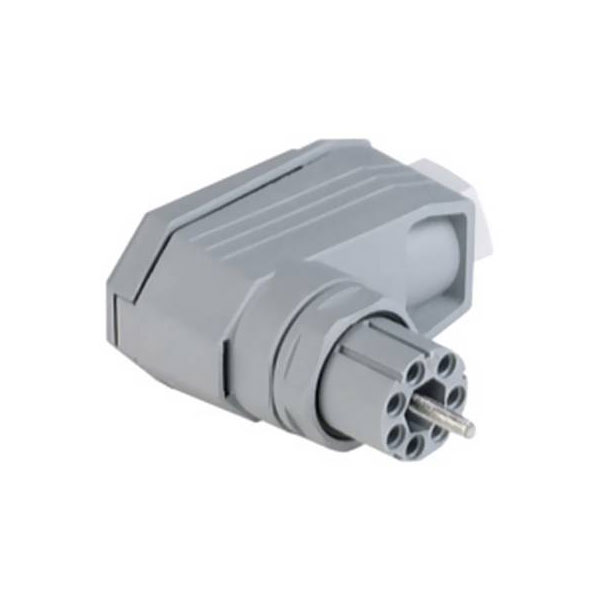

Hirschmann 932 632-106 N11R FF NR PG 11 R/A Cable Socket 11 + PE Grey

A 11 + PE multipin round connector approved to DIN 43651 standard. The connector is robustly constructed with a casing made from shock-proof, leakproof fibre glass reinforced plastic. The casing gives protection to IP 65 and provides a vibration resistant connection via its central threaded sleeve. A cable grip is inserted into the PG threaded connection. This angled cable socket has strain relief provided by means of a clamping cage.

• Min. cable diameter: 8 mm
• Cable diameter (max.): 10 mm
• Casing material: Shockproof/unbreakable fibreglass-reinforced plastic
• Colour: Grey
• Compatible with: R AM..., N11R AM 5, N11R BM FA
• Connections: Crimp
• Contact material: Surface CuZn silver plated
• Contact type: RBC 162/1
• Leading contact (PE): Yes
• Nominal current: 5 A
• Nominal voltage: 60 V
• Connection cross-section up to 0.5 mm²
• Protection class IP65
• Temperature range: -40 to +90 °C
• Total number of pins: 11 + PE
• Manufacturer type: N11R FF
• Manufacturer part No.: 932 632-106
