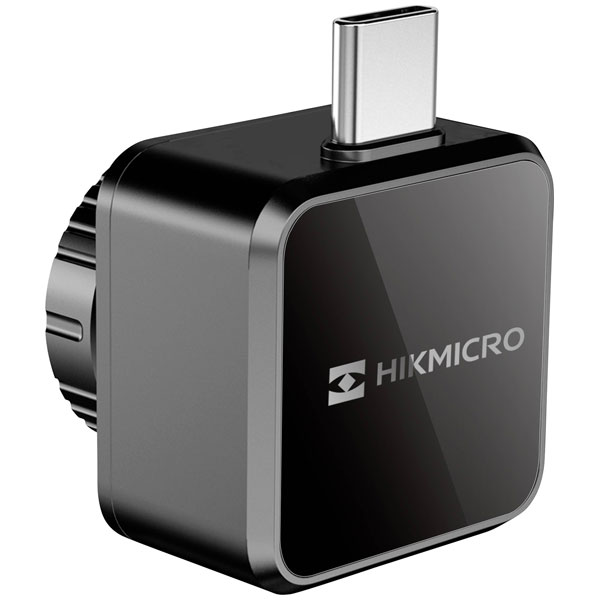

HIKMICRO HM-TJ32-7RF-Mini2Plus V2 Smartphone thermal imager 256x192 25Hz

HIKMICRO HM-TJ32-7RF-Mini2Plus V2, a precision-engineered smartphone thermal imager with the Manufacturer's Part Number 3423643. This product features a thermal resolution of 256x192 pixels and operates at a refresh rate of 25Hz, facilitating crisp thermal imaging for detailed analysis. Designed with infrared technology, the device is ideal for engineering applications such as electrical inspections, energy audits, and preventative maintenance, where detecting heat patterns is critical. The compact design integrates seamlessly with smartphones, offering enhanced portability for fieldwork and immediate analysis in diverse environments.

Type	Smartphone thermal imager
Accuracy ±	2°C
Basic Accuracy	2%
Bolometer array	256 x 192 Pixel
Dimensions	(L x W x H) 26.60 x 25 x 26.60 mm
Focus	Manual
Frame rate	25Hz
Height	26.60mm
Interfaces	USB C®
IP Rating	IP40
Length	26.60mm
Optics	25° x 18.8°
Temperature reading range	-20 up to 400 °C
Temperature reading range (max.)	400°C
Temperature reading range (min.)	-20°C
Thermal Sensitivity	40mK
Weight	26g
Width	25mm
