HellermannTyton 166-30314 SC16-FM-PG11 HelaGuard Metallic Conduit Screw Fitting

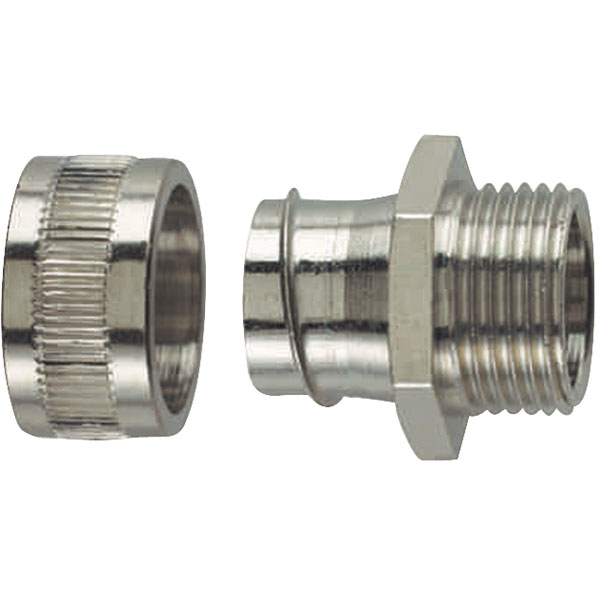

The HellermannTyton 166-30314 SC16-FM-PG11 is a Brass Connector for Metallic Conduit from the SC-FM Series. The connector has a swivel external PG11 thread and comprises of two parts, the shell and the body. The connector has been manufactured from nickel plated brass.

• Two-part fitting of shell and body with external thread
• Provides tight, reliable hold of conduit
• Can be secured with locknut
• Material: Nickel-plated brass
• Specification: HelaGuard hose screwing
• Halogen-free: Yes
• Operating temperature: -100°C to +300°C
• Material: Nickel plated brass
• Nominal diamater: 16mm
• Inside diamater: 13mm
• Thread type: PG
• Thread size: PG11
• Supplied singly
• Supplied in Metal
• Type: SC-FM Series
• Manufacturer's part: 166-30314 SC16

Please Note: Locknuts must be purchased separately (see order codes 49-6636 to 49-6650 or CLICK HERE)
