HellermannTyton 148-90039 HCPM-5 Connector Clip 5 Pins Blue 1pc

HellermannTyton
Order Code:

04-1541

Brand: HellermannTyton MPN: 148-90039 EAN-13: 2050004696523
Qty Unit Price (Ex VAT)
20+ £0.257
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
175 in stock, despatched in 4 working days

The HellermannTyton HCPM-5 is a connector clip featuring five pins, designed for flexible cables ranging from 1-2.5 mm² and fixed cables from 0.5-2.5 mm². This blue connector clip is ideal for use in electrical installations conforming to EU standards. It serves as a reliable solution for securing and connecting wires in residential or industrial settings.
Type Connector clip
Colour Blue
Connection Pull spring
Cross section (flexible) (max.) 2.5mm²
Cross section (flexible) (min.) 1mm²
Cross section (inflexible) (max.) 2.5mm²
Cross section (inflexible) (min.) 0.5mm²
Dimensions (L x W) 16.5 mm x 23.7 mm
Insulation Material PC
Length 16.5mm
Nominal Current 24A
Nominal Voltage 450V
Number of Pins 5

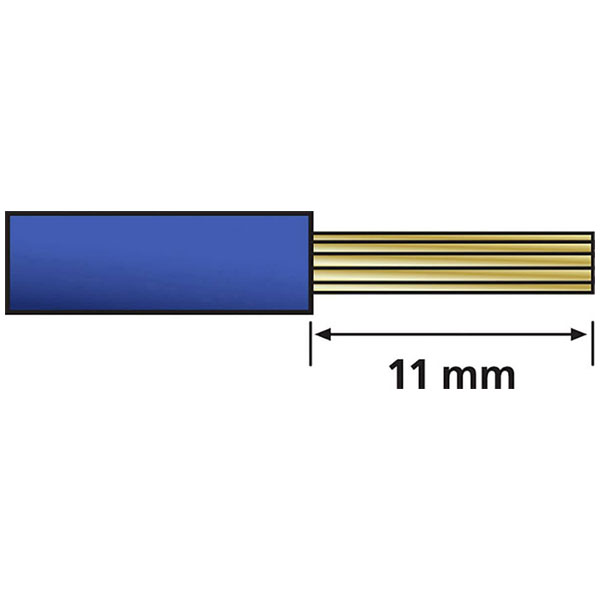

Stripping length 11mm
Temperature Range -30 °C - +85°C
Width 23.7mm
Wire protection Yes
