HellermannTyton 148-90037 Connector clip 3-pin 1pc flexible/fixed Orange

HellermannTyton
Order Code:

04-1539

Brand: HellermannTyton MPN: 148-90037 EAN-13: 2050004696509
Qty Unit Price (Ex VAT)
20+ £0.306
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
401 in stock, despatched in 4 working days

The HellermannTyton 148-90037 HCPM-3 connector clip is an orange component designed for flexible cables of 1-2.5 mm² and fixed cables of 0.5-2.5 mm². It features three pins, making it suitable for various electrical connection needs. This connector is typically used in European terminal applications, providing reliable and compact connectivity solutions.
Type Connector clip
Colour Orange
Connection Pull spring
Cross section (flexible) (max.) 2.5mm²
Cross section (flexible) (min.) 1mm²
Cross section (inflexible) (max.) 2.5mm²
Cross section (inflexible) (min.) 0.5mm²
Dimensions (L x W) 16.5 mm x 15.1 mm
Insulation Material PC
Length 16.5mm
Nominal Current 24A
Nominal Voltage 450V
Number of Pins 3

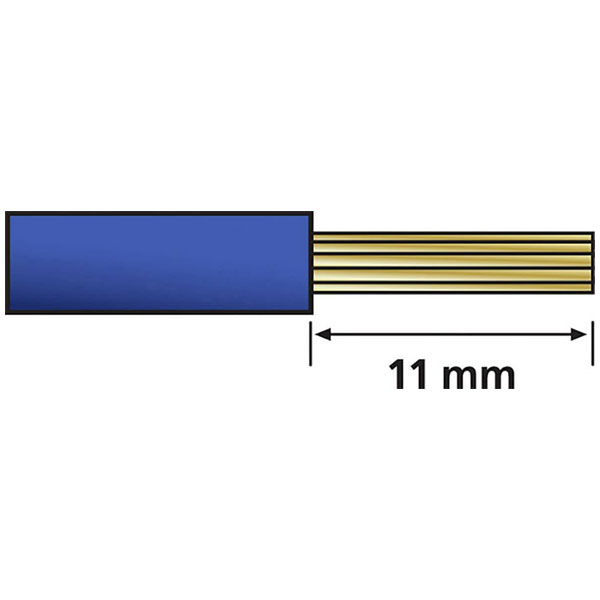

Stripping length 11mm
Temperature Range -30 °C - +85°C
Width 15.1mm
Wire protection Yes
