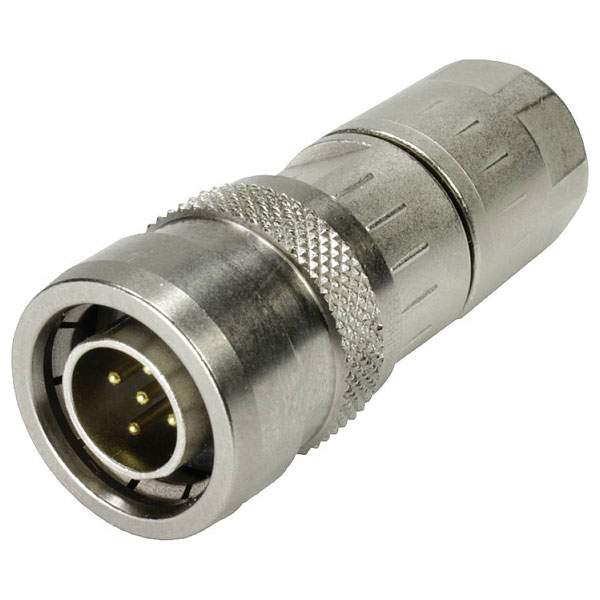

Harting 21 03 821 1830 Connector Straight Plug 8 Pins

Harting
Extended range
Order Code:

03-9797

Brand: Harting MPN: 21 03 821 1830
Qty Unit Price (Ex VAT)
1+ £33.47
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 6 weeks

The Harting 21 03 821 1830 connector is a straight plug with eight pins designed for reliable electrical connections. Manufactured by Harting, this component ensures secure coupling and efficient signal transmission. It is typically used in industrial and automation applications requiring durable and precise connectivity solutions.
Type Connector
AWG 26 - 22
Cable Ø (max.) 8.8mm
Cable Ø range 5.7 - 8.8 mm
Cable Ø up to 5.7mm
Case material Diecast zinc
Code A
Connection Crimp
Connector type Plug, straight
Cross-section range 0.13 - 0.33 mm²
Feature A-coded
Manufacturer part # 21 03 821 1830
max. cross section 0.33mm²
Max. temperature +85°C
Min. cross section 0.13mm²
Min. temperature -40°C
Misc Attribute 21 03 821 1830
No. of contact sizes 8
Nominal current 2A
Nominal current - rounded value 2A
Nominal voltage 30V
Number of pins 8
RoHS-compliant Yes
Seal Push-pull
Total no. of pins 8
Weight 60.2g
