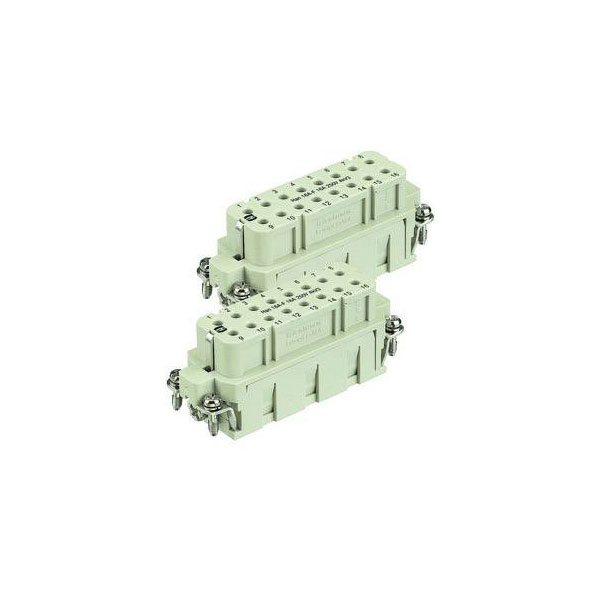

The Harting socket insert 09 20 016 3111 is a heavy-duty, industry-grade electrical connector designed for high voltage and multicore applications. It features robust construction suitable for industrial environments. Typical uses include electrical engineering projects requiring reliable, high-performance connections.
| Type |
Socket inset |
| Gender |
Female |
| Approvals |
DNV GL |
| Category |
Inserts |
| Colour |
Pebble grey (RAL 7032) |
| Colour (insert) |
RAL 7032 (pebble grey) |
| Conductor cross-section (mm²) |
0.14 ... 4mm² |
| Connection |
Crimp |
| Contact identification |
17 ... 32 |
| Details |
Please order crimp contacts separately. |
| ELV status |
compliant |
| Fire protection on railway vehicles |
EN 45545-2 (2020-08) + A1 (2023-10) |
| Insulation Resistance |
>1010O |
| Leading Contact (Pe) |
Yes |
| Limiting temperature |
-40 ... +125 °C |
| Material |
Polycarbonate (PC) |
| Material (insert) |
Polycarbonate (PC) |
| Material flammability class acc. to UL 94 |
V-0 |
| Mating cycles |
= 500 |
| Maximum Temperature |
+125°C |
| Number of Contacts |
32 |
| Number of Ways |
16 + PE |
| PE contact |
Yes |
| Rated current |
? 16 A |
| Rated impulse voltage |
4 kV |
| Rated voltage |
250 V |
| Rated voltage acc. to UL |
600 V |
| REACH ANNEX XIV substances |
Not contained |
| REACH Annex XVII substances |
Not contained |
| REACH SVHC substances |
Not contained |
| Requirement set with Hazard Levels |
R22 (HL 1-3) |
| Series |
Han A® |
| Size |
32 A |
| Specification |
Continuing marking |
| Specifications |
IEC 60664-1 |
| Termination Method |
Crimp termination |
| Tightening torque |
?0.8 Nm PE screw M3.5 |
| UL / CSA |
UL 1977 ECBT2.E235076 |
