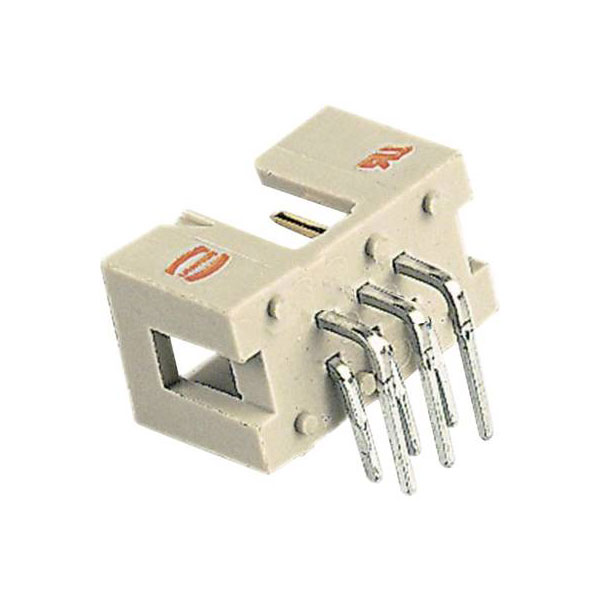

Low profile 14-pole male header from the Harting SEK 18 Series with angled soldered pins.
- Number of pins: 14
- Grid pitch: 2.54mm
- DIN standard: 416xxx
- Pin length 2.9mm
- Housing material: PBTB to UL94V0
- Manufacturer's part 09 18 514 6323
| Type |
Edge connector (pins) |
| Pitch |
2.54mm |
| Number of Ways |
14 |
| Number of Rows |
1 |
| Mounting Type |
Cable mount |
| Mounting Direction |
Straight |
| Category |
Connectors |
| Colour (insert) |
Grey |
| Connection Type |
PCB to cable |
| Contact Resistance |
= 20 mO |
| Contact rows |
2 |
| Contact spacing (termination side) |
2.54mm |
| Description of the contact |
Angled |
| Element |
Male connector |
| ELV status |
compliant |
| Fire protection on railway vehicles |
EN 45545-2 (2020-08) + A1 (2023-10) |
| Insertion force |
= 28 N |
| Insulation Resistance |
>109O |
| Isolation group |
IIIa (175 = CTI < 400) |
| Limiting temperature |
-55 ... +125 °C |
| Material (contacts) |
Copper alloy |
| Material (insert) |
Thermoplastic resin (PBT) |
| Material flammability class acc. to UL 94 |
V-0 |
| Mating Cycles |
= 250 |
| Maximum Temperature |
+125°C |
| Min. temperature |
-55°C |
| Number of pins |
14 |
| Railway classification |
F3/I3 |
| Rated current |
? 1 A |
| REACH ANNEX XIV substances |
Not contained |
| REACH Annex XVII substances |
Not contained |
| REACH SVHC substances |
Not contained |
| Requirement set with Hazard Levels |
R26 |
| Series |
SEK Low-profile |
| Specifications |
IEC 60603-13 |
| Surface (contacts) |
Noble metal over Ni Mating side |
| Termination length |
2.9mm |
| Termination Method |
Wave soldering termination |
| Test voltage Ur.m.s. |
1 kV |
| UL / CSA |
UL 1977 ECBT2.E102079 |
| Withdrawal force |
= 28 N |
