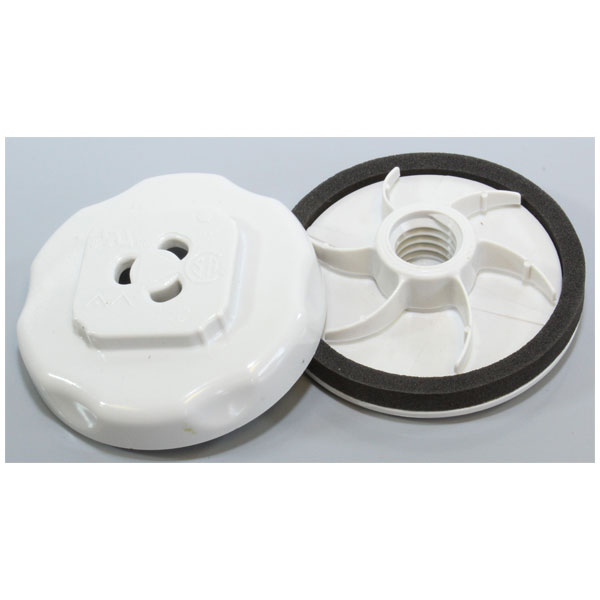

Hammond HP100PCLG IP66 Non-Metallic Hole Plug 49mm Diameter

Hammond
Standard range
Order Code:

31-1798

Brand: Hammond MPN: HP100PCLG UPC-12: 623980101637
Qty Unit Price (Ex VAT)
1+ £10.25
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 2 working daysBack-order availability date - 13/07/2025

The Hammond Type 4X HPN4PC Series Hole Plug is designed to seal unused pushbutton holes, conduit openings or knock-out holes against the ingress of dust, oil and water.

Compatible with enclosure wall thickness of 1.6mm to 6.35mm.

Recognised component for use with UL & CSA listed enclosures, Type 1, 3, 3R, 4, 4X.





  • 49mm Diameter
  • RAL7035 Light Grey
  • Moulded Polycarbonate
  • 35mm Minimum Hole Diameter
  • 41mm Maximum Hole Diameter
  • Neoprene/EPDM Gasket
  • Self centring, anti-rotational design
  • Easy one person installation
  • No tools required

Available in 7 sizes.

Designed to maintain the IP66/NEMA 4X rating of Enclosure once fitted.

Hammond enclosure modification


Colour Light Grey
External Features Neoprene/EDPM gasket
Internal Features N/A
Material Polycarbonate
Diameter 49mm
Finish N/A
Flame Resistance N/A
Height N/A
IP rating N/A
Length N/A
Series HPN4PC
Type Hole Plug
Width 49mm
