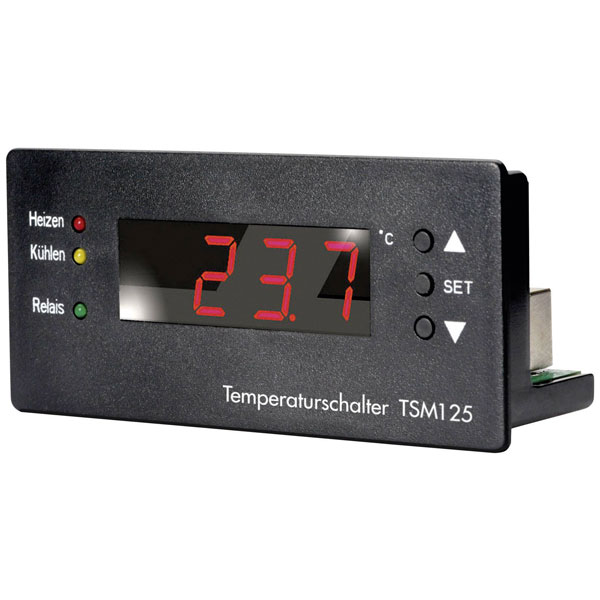

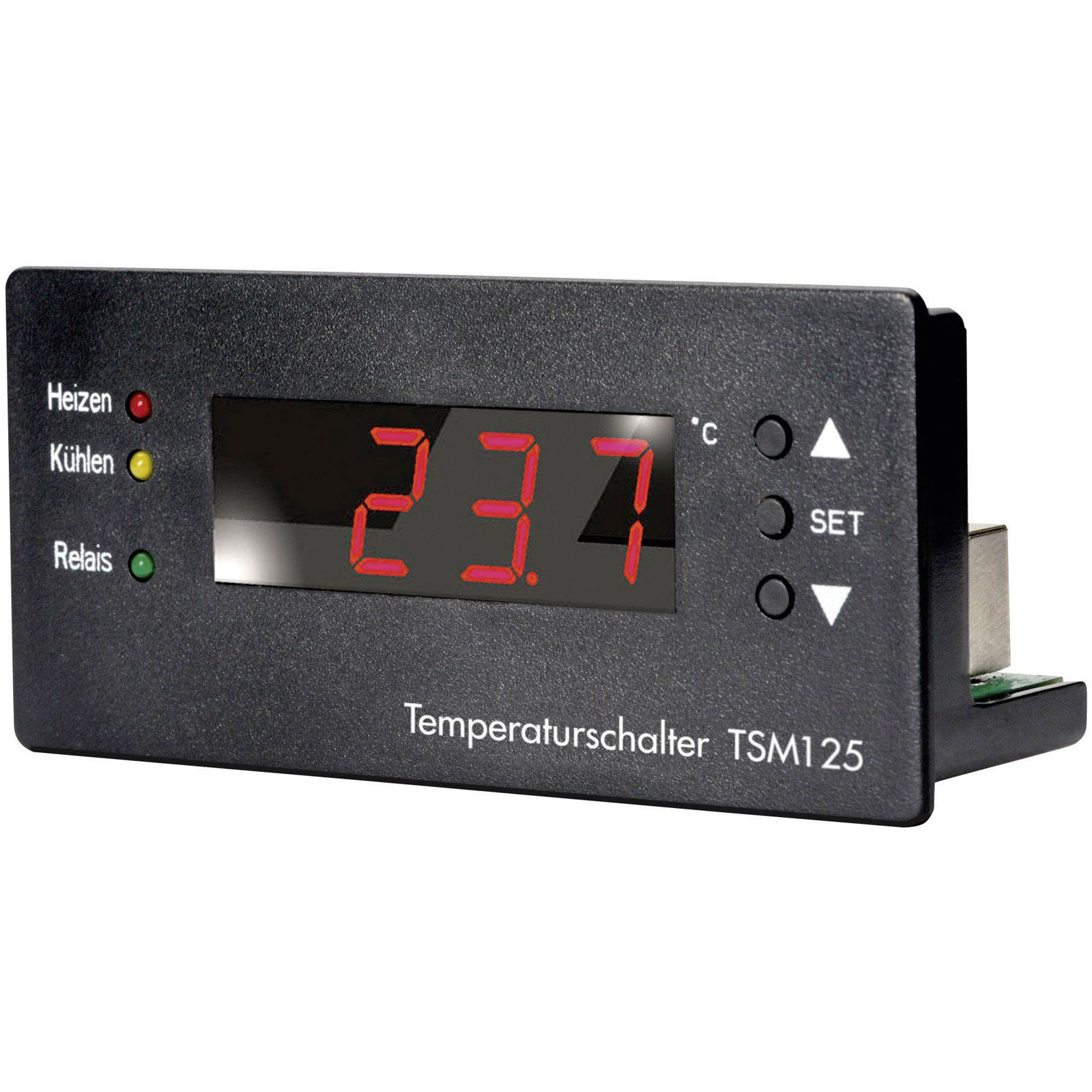

H-Tronic 1114525 TSM125 Temperature Switch 12V DC Range -55°C to 125°C

The H-Tronic 1114525 TSM 125 temperature switch operates with a 12 V DC power supply and has a temperature range of -55 to 125°C. It is designed to provide reliable temperature monitoring and control in various electronic applications. This switch is ideal for use in automotive, industrial, and home automation systems.

Type	Temperature switch
Current Consumption	60mA
Dim	(L x W x H) 35 x 101 x 47 mm
Height	47mm
Length	35mm
Maximum Temperature	125°C
Min. temperature	-55°C
Mounting Type	Panel
Output Current	5A
Output Rating	5 A/250 V/AC (potential free relay contact)
Temperature reading range (min.)	-55°C
Version	Component
Voltage Range	12V DC
Width	101mm
