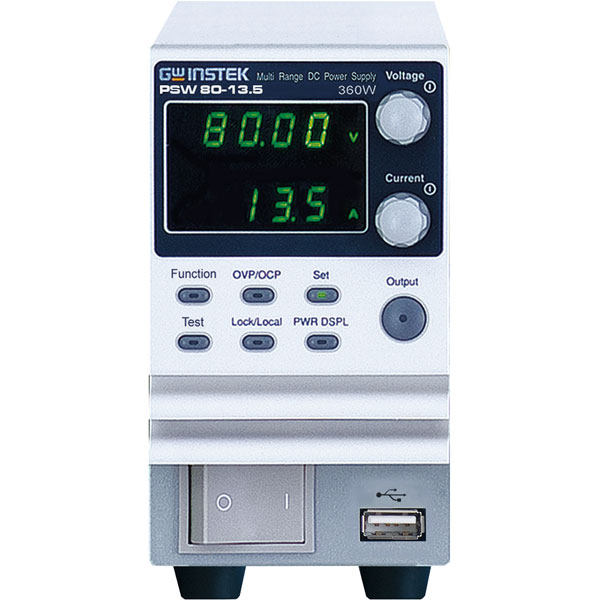

GW Instek PSW80-13.5 360W Programmable Switching DC Power Supply

The GW Instek PSW80-13.5 is a single output multi-range programmable switching DC Power Supply covering a power range up to 360W. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the GW Instek PSW80-13.5 can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications.

With the flexibility of multi-range power utilization and series/parallel connection, the GW Instek PSW80-13.5 significantly reduces the user's investment for various power supply products to accommodate the projects with different power requirements.

• Voltage rating: 80V
• Output power: 360W
• Constant power output for multiple ranges (V&I) operation
• CV/CC Priority; particularly suitable for the battery and LED industry
• Adjustable slew rate
• Series and parallel operation (2 units in series/ 3 units in parallel maximum)
• High efficiency and high power density
• 1/6 Rack mount size design (EIA/JIS standard)
• Standard interface: LAN,USB, analog control interface
• Labview driver
• Manufacturers part no. GW Instek PSW80-13.5
