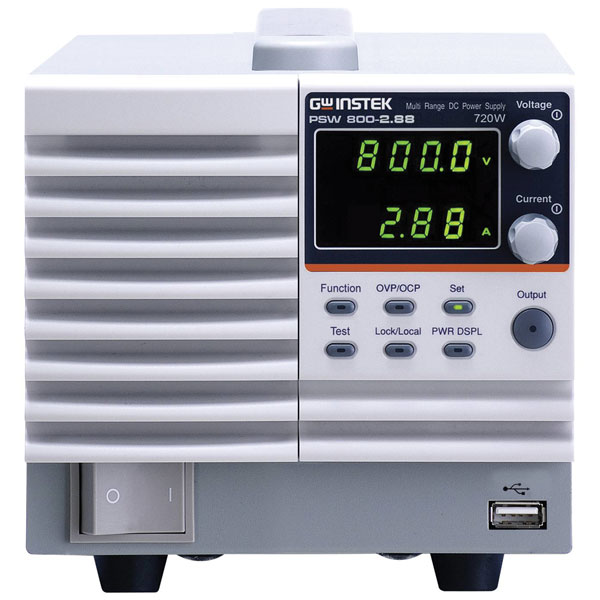

GW Instek PSW 800-2.88 720W Bench PSU Adjustable 0-800V 0-2.88A

The devices of the PSW-series are multi-area laboratory power supply with an output. The multi-range function allows a fast and flexible adjustment of output voltage and current within the output power of the device. There can be up to 3 power supplies in parallel, and up to 2 units. To do this, you can also devices of the PSW-series with different output values are combined. This creates a variety of combination possibilities and thus offers the right solution for many applications. By default, the devices of the PSW-series with a USB and LAN interface.

Type	Bench PSU (adjustable voltage)
Number of Outputs	1
Input Voltage	85 - 265V AC
Calibrated to	Manufacturer's standards (no certificate)
Depth	350mm
Dim	(W x H x D) 142 x 124 x 350 mm
Height	124mm
Mains control	0.05% + 5 mV
Max. output current	2.88A
Misc Attribute 1	Switched Mode
Misc Attribute 2	PSW 800-2.88
Misc Attribute 3	Desktop
Output current (min.)	0A
Output voltage (max.)	800V DC
Output voltage (min.)	0V DC
Output Voltage 1	0 - 30V DC
Power	720W
Technology	SMPSU
Width	142mm
