Greisinger Humidity/ Temperature Measuring Device, GHTU - 1R/ 1K/ 2K

Greisinger Brand: Greisinger

A range of Greisinger Humidity/Temperature Transmitters that include the Sensor from the GHTU Series. This range ensures optimal adaptability to different conditions like Surface Design, Surface/Duct Design, Duct Design and Surface Design with Weather Proofing. The sensor module is particularly suitable for industrial applications due to its robust surface-mounted housing making them appropriate for almost all applications.

The modules have an on-site display, therefore direct configuration is possible. The housing of the module is made of robust ABS. They have an unscrewable protective cap with gauze filter insert, made of stainless steel (105µm mesh size).

Applications: Indoor climate monitoring and Monitoring of storage rooms.

  • On-site display for humidity and temperature
  • Output signals freely scalable
  • Several design types
  • Available models; Greisinger GHTU-1R-MP, GHTU-1K-MP and GHTU-2K-MP
Description Image Product Buy Pricing (Ex VAT) Humidity Range Temperature Range

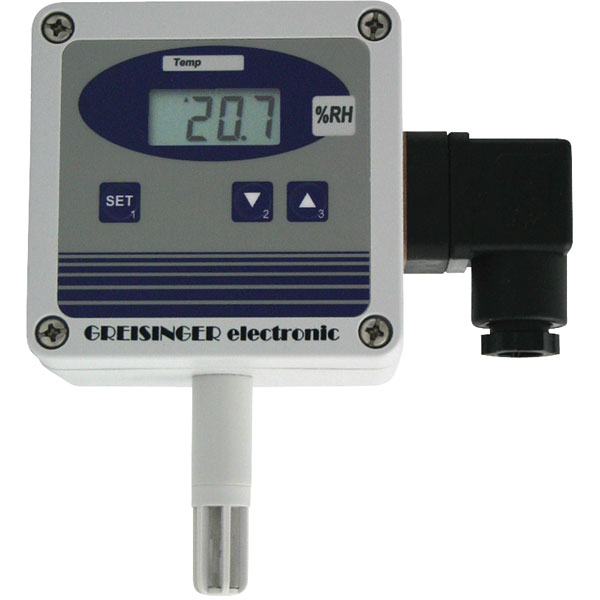

Greisinger GHTU-1R-MP Thermo Hygrometer
Greisinger GHTU-1R-MP Thermo Hygrometer
Standard range
Order code: 60-3853
MPN: 603351

2 in stock, despatched in 4 working days
1+ £250.86
Price per unit Ex VAT 		0 to 100% RH -20 to +70°C
Greisinger GHTU-1K-MP Thermo Hygrometer
Greisinger GHTU-1K-MP Thermo Hygrometer
Standard range
Order code: 60-3885
MPN: 602650

1 in stock, despatched in 4 working days
1+ £250.86
Price per unit Ex VAT 		0 to 100% RH -20 to +70°C

Mftrs. Part No.DescriptionVersion typeOrder code
GHTU-1R-MPThermo-HygrometerSurface design60-3853
GHTU-1K-MPThermo-HygrometerSurface / duct design60-3885
GHTU-2K-MPThermo-HygrometerDuct design60-4003

Specification applies to all three versions GHTU - 1R / 1K / 2K

Specification (humidity)
Standard:0 - 100%RH (rec. range of application: 30 - 80%RH)
High humidity:0 - 100%RH (rec. range of application: 11 - 90%RH)
Sensor:Capacitive thin film sensor (unsuitable for dusty and aggressive media)
Accuracy:(at nominal temperature)
Linearity: Standard:±2%RH (from 30 to 80%RH)
High humidity:±2%RH (from 11 to 90%RH)
Hysteresis:Standard ±1.5%RH (from 30 to 80%RH)
High humidity:±1.0%RH (from 11 to 90%RH)
Specification (temperature)
Sensor:platinum resistance thermometer Pt100, acc. to DIN JEC751
DIN class B:±0.3°C at 0°C
1/3 DIN: ±0.1°C at 0°C
Accuracy:(electronic) better ±0.2% FS
Temperature coefficient:0.05%/°C
Specification
Auxiliary energy:+Vs = 12 - 30V DC (For 0-10V: +Vs = 18 - 30V DC)
Reverse voltage protection:50V permanent
Permissible impedance:4-20mA: RA < (Vs - 12V) / 0.02A
Permissible load:0-1(10)V: RA > 3000Ω
Working temperature:Electronics: 0°C to +70°C
Sensors:0°C to +70°C (standard-sensor)
-30°C to +120°C
Nominal temperature:+25°C
Storage temperature:-20°C to +70°C
Relative atmospheric humidity:0 to 100 % RH (non-condensing)
Housing:ABS (IP65)
Mounting position:Sensor tube pointing vertically downwards, ±90° angle deviation
Sensor tube:Aluminium, Ø 14mm, anodized with bronze filter 80-160μm
Electric connection:Via angle plug according to DIN 43650 (IP65)
Mounting:By means of screw thread
Mounting distance:50 x 70mm, max. shaft diameter of mounting screws is 4mm
