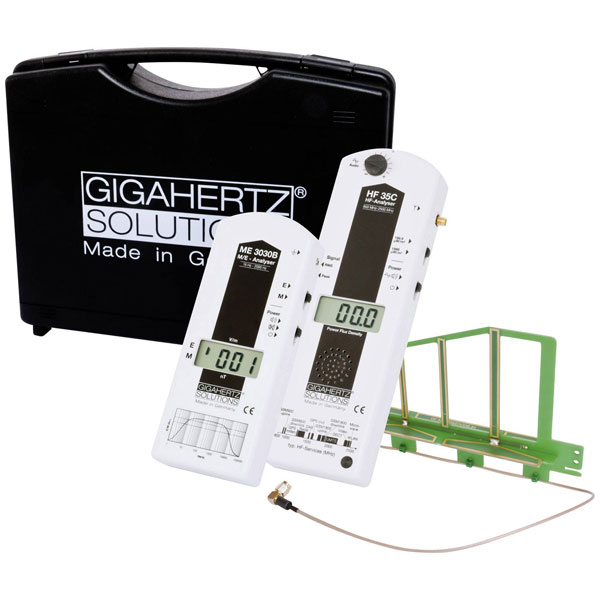

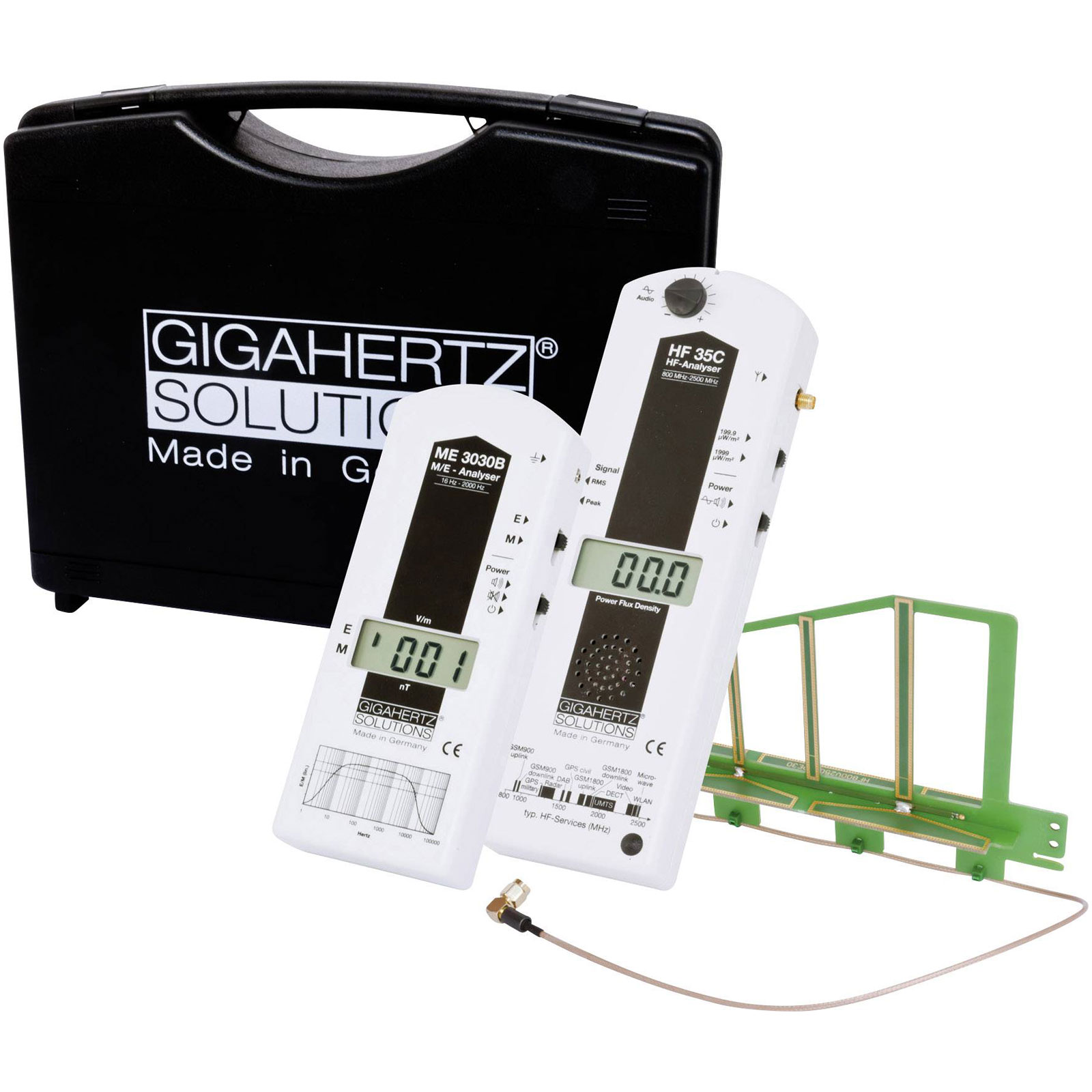

The Gigahertz Solutions MK20 HF EM radiation tester is designed for detecting high-frequency electromagnetic radiation. It is a portable and accurate device, ideal for identifying sources of electrosmog in residential and commercial environments. This radiation meter is commonly used for assessing exposure from wireless devices and communication infrastructure.
| Type |
HF EM radiation tester |
| Radiation Type |
EM Radiation |
| AC field reading range (max.) |
1999 V/m |
| AC field reading range (min.) |
1 V/m |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Dim |
(L x W x H) 330 x 275 x 82 mm |
| Display |
LCD |
| Display (details) |
3.5 digit liquid crystal display, audible signal proportional to field strength (like a Geiger counter) |
| Frequency Range |
16 Hz - 100 kHz
800 MHz - 2.5GHz |
| Frequency Response |
5 Hz - 100 kHz, 2dB (in accordance with the standard of the ecological measuring technique) · 800 - 2500 MHz (2.5 GHz) includes the pulsed GSM mobile radio of D1, D2 and E-Plus, UMTS, DECT, WLAN (Bluetooth) airport radar (as far as in the frequency range), microwave oven |
| Height |
82mm |
| Length |
330mm |
| Magnetic flux density reading range |
1 - 1999 nT |
| Magnetic flux density reading range (max.) |
1999 nT |
| Magnetic flux density reading range (min.) |
1 nT |
| Power flux density reading range |
1999 µW/m² (max) |
| Power flux density reading range (max.) |
1999 µW/m² |
| Power supply (details) |
9 V block alkaline battery |
| Reading Type |
Radiant flux |
| Weight |
1.24kg |
| Width |
275mm |
