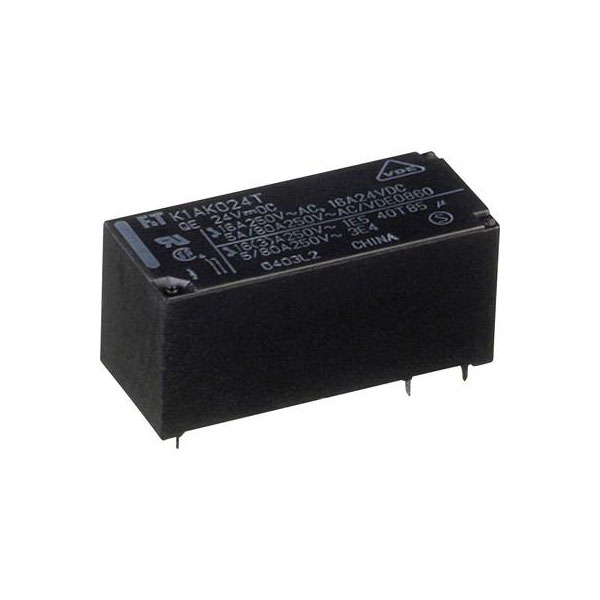

Fujitsu FTR-K1AK024T Miniature Power Relay 24V DC 16A 5kV Insulation

Fujitsu
Standard range
Order Code:

09-1677

Brand: Fujitsu MPN: FTR-K1AK024T EAN-13: 2050001760531
Qty Unit Price (Ex VAT)
1+ £1.49
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
563 in stock, despatched in 4 working days

Fujitsu manufactures the FTR-K1AK024T PCB relay, designed to handle 24 V DC and a current of 16 A. This mini relay is suitable for printed circuit board applications and is ideal for various electrical and electronics projects. It is commonly used in automotive, industrial, and consumer electronic systems for reliable switching operations.
Height 15.7mm
Length 29mm
Type PCB relay
Width 12.7mm
Coil nominal voltage 24V DC
Connection Solder pins
Contact material AgSnO2
Contact type 1 maker
Control mode monostable, 1 coil
Dim (L x W x H) 29 x 12.7 x 15.7 mm
Durability 20 x 106 switching cycles
Electrical lifespan 100 x 103 switching cycles
Max. pick-up voltage 58.8V DC
Max. temperature +85°C
Min. pick-up voltage 16.8V DC
Min. temperature -40°C
Misc Attribute FTR-K1AK024T
Resistance (coil) 1440Ω
RoHS-compliant Yes
Switching current (max.) 16A
