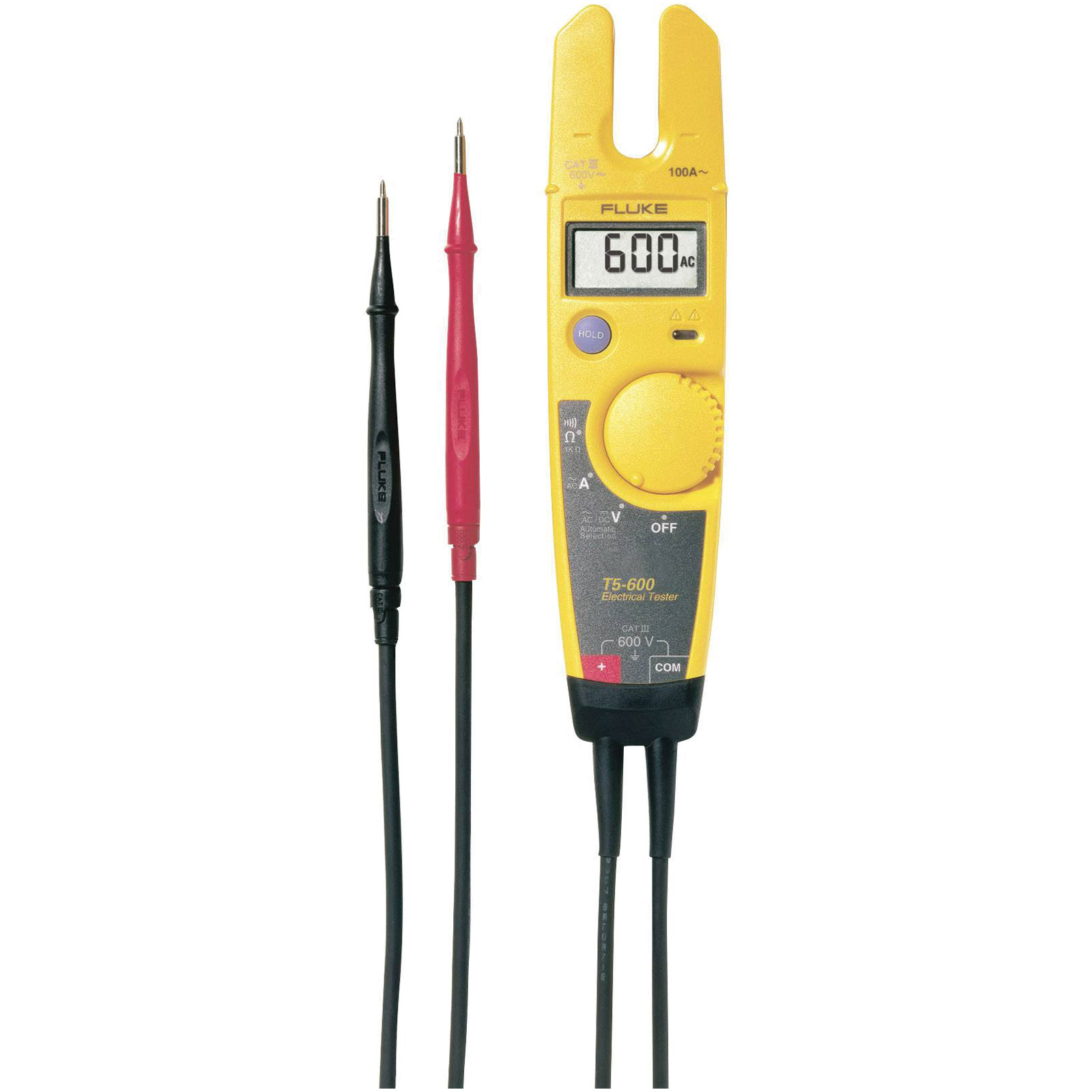

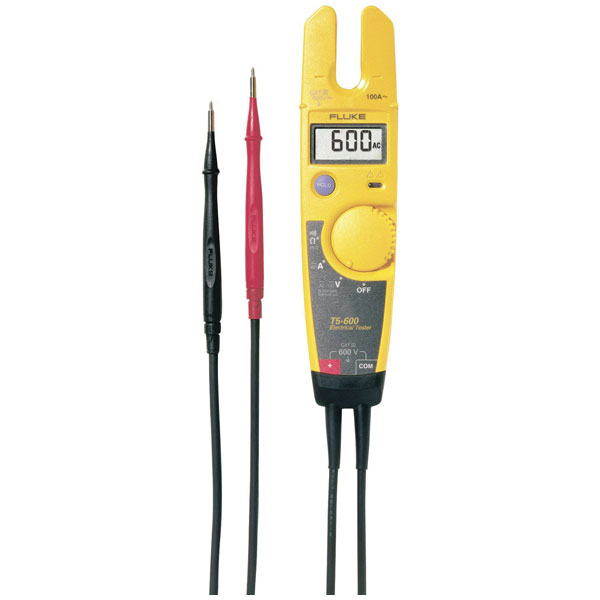

Fluke 659612 T5-600 two-pole voltage tester CAT III 600 V LCD, acoustic

Tester for voltage, continuity and current. The fixed fork allows the testing of currents without breaking the circuit. The test leads can be stored on the back side, saving space. Available in two versions for 600 V and 1000 V.

Maximum Voltage	600V
Display Type	Digital (LCD)
Automatic circuit breaker	false
Bluetooth interface	false
Cable length measurement	false
Cable symmetry testing for two wire connections a-b-E	false
Calibrated	Manufacturer's standards (no certificate)
Calibration according to ISO/IEC 17025	N/A
Calibration certificate according to DAkkS	N/A
Capacitance Measurement	false
Clip factors for current sensor	N/A
Clip factors for current transformer	N/A
COFRAC certified	N/A
Continuity test	true
Current supply	Battery
Data hold	true
Degree of protection (IP)	IP40
Dimensions	(L x W x H) 31 x 51 x 203 mm
Display (details)	LCD (4000 counts)
Duty cycle measurements	false
Explosion-tested version	false
Frequency measurement	false
Frequency Range	45 Hz - 66 Hz
Harmonics analysis/power quality	false
Height	203mm
High voltage test for motor windings	false
Indication	Digital
Inductance measurement	false
Insulation Test Voltage	CAT III
Interface	false
IP Rating	IP52
IR interface	false
Isolation resistance measuring range	N/A
Length	31mm
Lowest resolution temperature	N/A
Lowest resolution, AC current	Other
Lowest resolution, AC voltage	Other
Lowest resolution, AC/DC current	N/A
Lowest resolution, AC/DC voltage	N/A
Lowest resolution, capacitance	N/A
Lowest resolution, DC current	N/A
Lowest resolution, DC voltage	Other
Lowest resolution, frequency	N/A
Lowest resolution, resistance	1 Ohm
Max. capacitance measuring range	N/A
Max. current measuring range with clip factor	N/A
Max. current measuring range, AC	100A
Max. current measuring range, AC/DC	N/A
Max. current measuring range, DC	N/A
Max. frequency	66Hz
Max. frequency measuring range	N/A
Max. resistance measuring range	0.001MOhm
Max. temperature measuring range	N/A
Max. value storage	false
Max. voltage measuring circuit category	600V
Max. voltage measuring range AC	600V
Max. voltage measuring range AC/DC	N/A
Max. voltage measuring range DC	600V
Measured value memory	false
Measurement principle	N/A
Measuring circuit category	CAT III
Measuring range selection	Automatic
Milliohm measurement with 4 wire technique (Kelvin connection)	false
Min. frequency	45Hz
Min. value storage	false
Misc Attribute	T5-600
Multiple display	false
Nominal test voltage 10 V	false
Nominal test voltage 100 V	false
Nominal test voltage 1000 V	false
Nominal test voltage 250 V	false
Nominal test voltage 50 V	false
Nominal test voltage 500 V	false
Peak value memory	false
Power and energy measurement	false
Power supply (details)	2 x 1.5 mmV DC
Reading Category	CAT III 600 V
Relative measurement accuracy	N/A
Relative value measurement	false
Resistance test/diode test	false
Rotational speed measuring	false
Scaling bar graph linear	false
Scaling bar graph logarithmic	false
Temperature measurement	false
Temperature measurement RTD	false
Temperature measurement TC	false
True RMS measurement	false
Type	Voltage Tester
V AC reading range (min.)	1V
Voltage reading range DC (min.)	1V
Weight	300g
Width	51mm
With conductivity measurement	false
With decibel measurement (dB)	false
With display backlight	false
